Following the latest ATX 3.1 & PCIe Gen 5.1 regulation, support up to 200% power excursion and with the new interface of PCIe 12V-2x6 connector to ensure peak performance with future hardware upgrades.
*750W models are available with PCIe Gen 5.1 connector
The +5V & 3.3V DC to DC circuit design enhances efficiency and stabilizes output voltage for consistent system performance.
Certified by world-class organizations 80 PLUS® 230V EU Bronze certification for lower power loss, less heat, and quieter operation.
Engineered for power-hungry Graphics cards, this design delivers robust power to handle even the most demanding overloading conditions, ensuring peak performance in every gaming session.
The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.

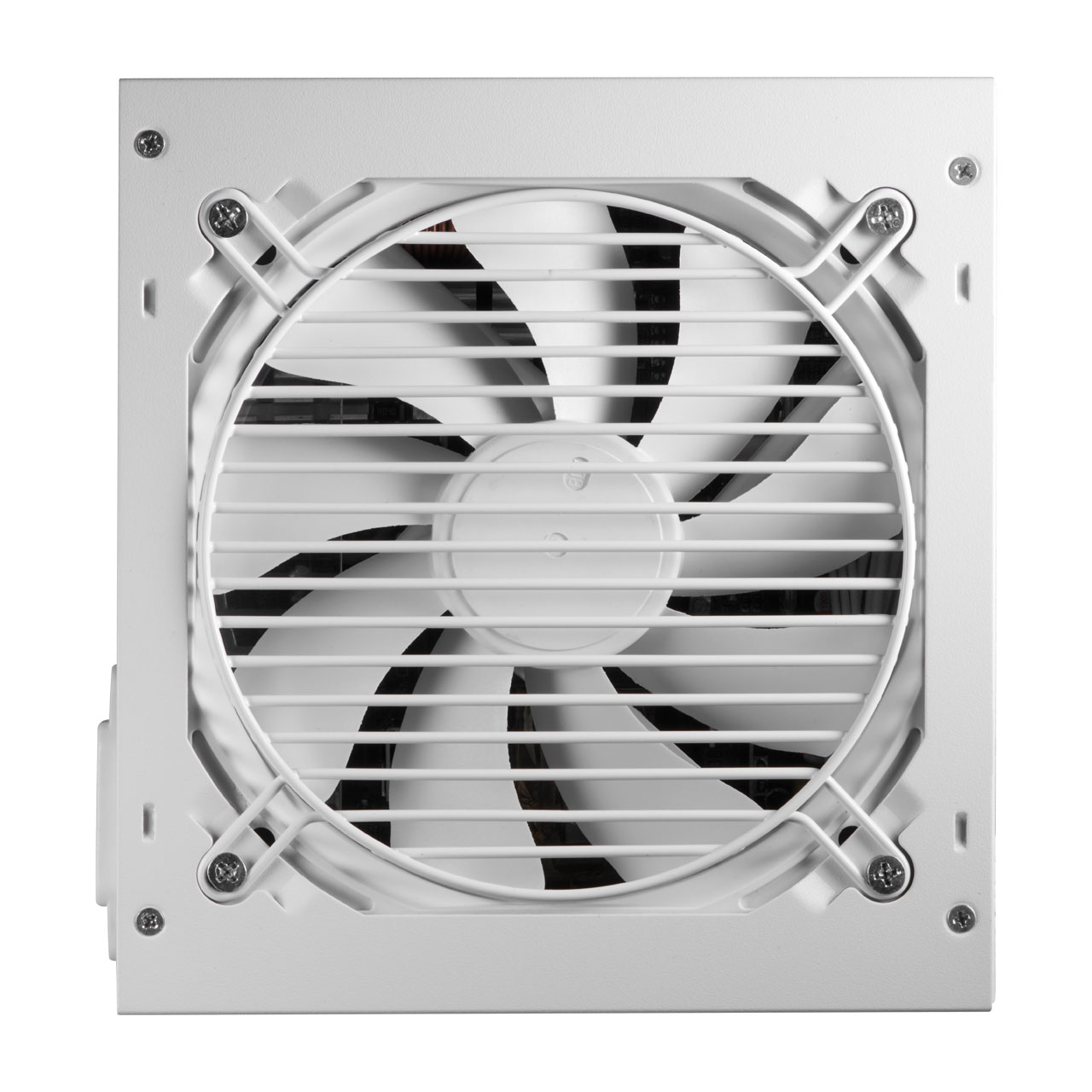

Built with optimized thermal solution and an advanced 120mm HDB fan for cooler components and quieter operation.
140mm in length which is relatively shorter than industry standard, it’s ideal for compact PC or space-constraint environment without compromising on performance.
The VIC BD power supply is engineered for reliable power delivery, even in temperatures up to 40°C. Count on stable performance for your everyday computing, ensuring system longevity without heat concerns.
*Performance data based on testing conducted at 25°C ambient temperature.Featuring improved white, embossed cables that are soft and easy to bend, users can manage them more easily, saving time and creating more space for optimal cooling performance in your PC build.
This power supply is equipped with dual 8-pin PCIe power connectors, delivering ample 12V power to meet the demands of high-performance CPUs.
Over Voltage Protection
Over Current Protection
Over Power Protection
Over Temperature Protection
Short Circuit Protection
Under Voltage Protection
Surge and Inrush Protection
No-load Operation
Our comprehensive circuit shields your valuable components from harm.
MB 20+4 PIN
CPU 4+4 PIN
PCIe 6+2 PIN
PCIe 6+2 PIN
PCIe 12V-2x6
SATA
MOLEX/SATA
| AC Input | 200-240V~ 6-3A 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 16A | 16A | 62.5A | 0.3A | 3A |
| Max Combined Power | 80W | 750W | 3.6W | 15W | |
| Total Power | 750W | ||||
| 型号 | VIC-750BD(White Edition) |
|---|---|
| 额定功率 | 750W |
| 规格 | ATX12V V3.1 |
| 80 PLUS 认证 | 230V EU Bronze |
| 输入电压 | 200-240V |
| 输入电流 | 6-3A |
| 输入频率 | 50-60Hz |
| PFC | Active ≧ 0.9 |
| 效率 | ≧ 88% at typical load |
| 风扇类型 | 120mm, HDB Bearing |
| 尺寸(L x W x H) | 140 × 150 × 86 mm |
| 操作温度 | 25°C |
| 保护 | OCP, OVP, SCP, OPP, UVP, OTP,SIP, NLO |
| Warranty | 3 Years |
