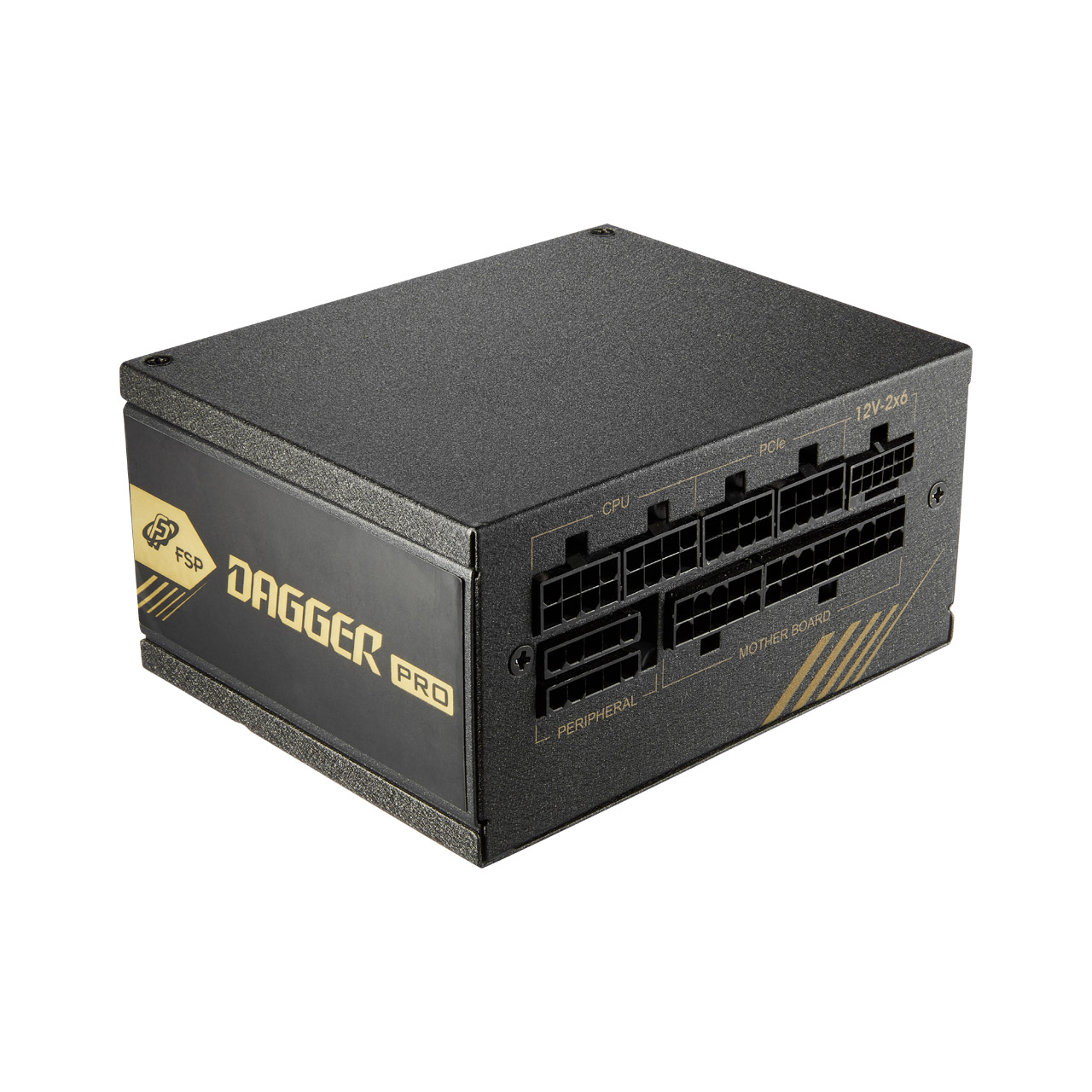

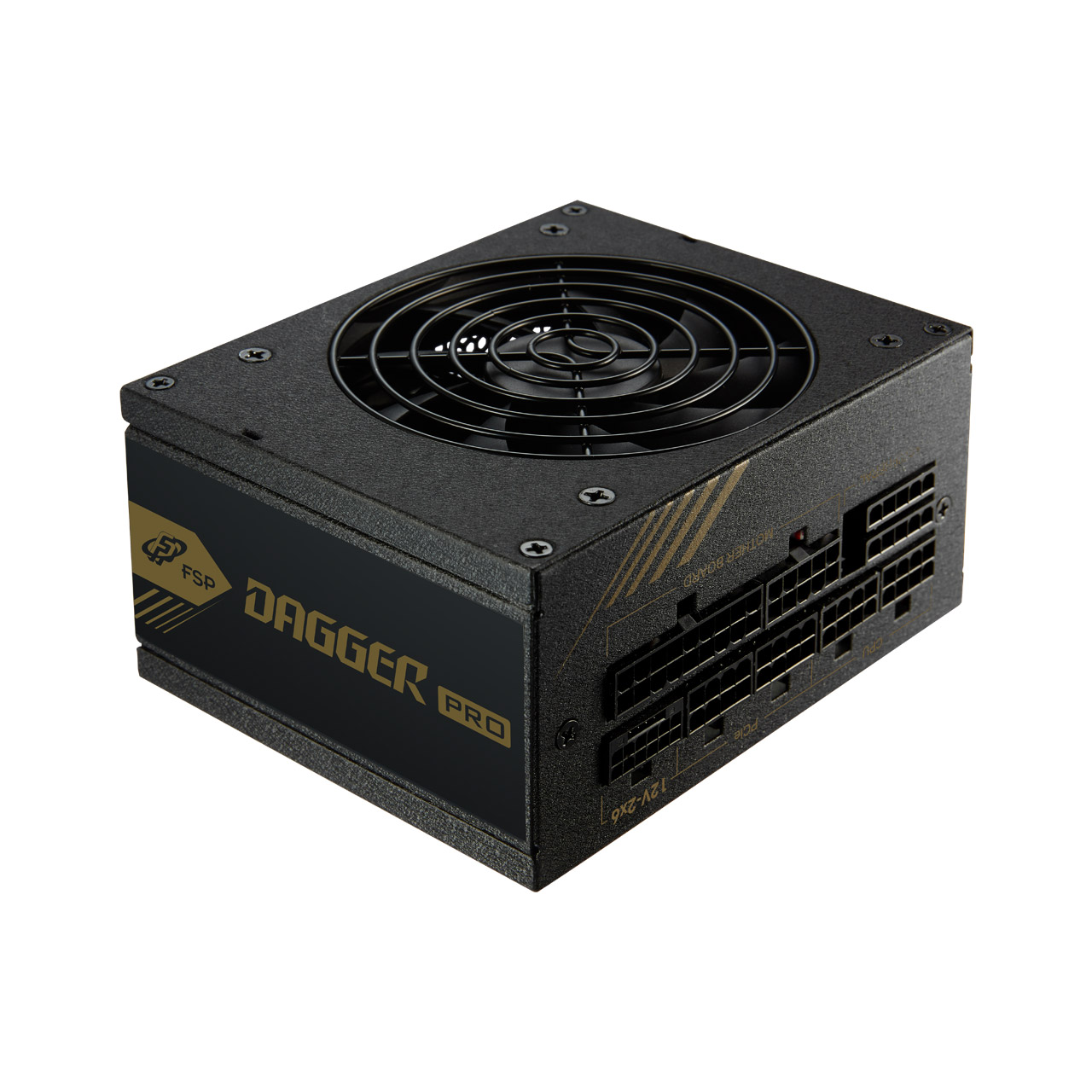

DAGGER PRO(ATX3.1) 850W
DAGGER PRO(ATX3.1) 850W
- Compliance with ATX12V V3.1(SFX12V V4.0 for 750W & 850W)
- Compliance with PCIe 5.1
- Efficiency ≧ 90% at typical load
- MIA IC (Multiple Intelligence Ability) chip set inside
- Semi-fanless design for silent operation
- Quiet and long-lasting 92mm ball bearing fan
- Powerful single +12V rail design
- Japanese electrolytic capacitors
- Intel latest CPU ready
- Circuit protections OCP, OVP, SCP, OPP, OTP
New ATX PSU Specifications
Updated ATX 3.1 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.
Tiny but Powerful
The DAGGER PRO(ATX3.1) series is compatible with most Mini-ITX and Micro ATX small form factor PCs. It is an ideal for home computer rigs but a great alternative for mini-PC enthusiasts.

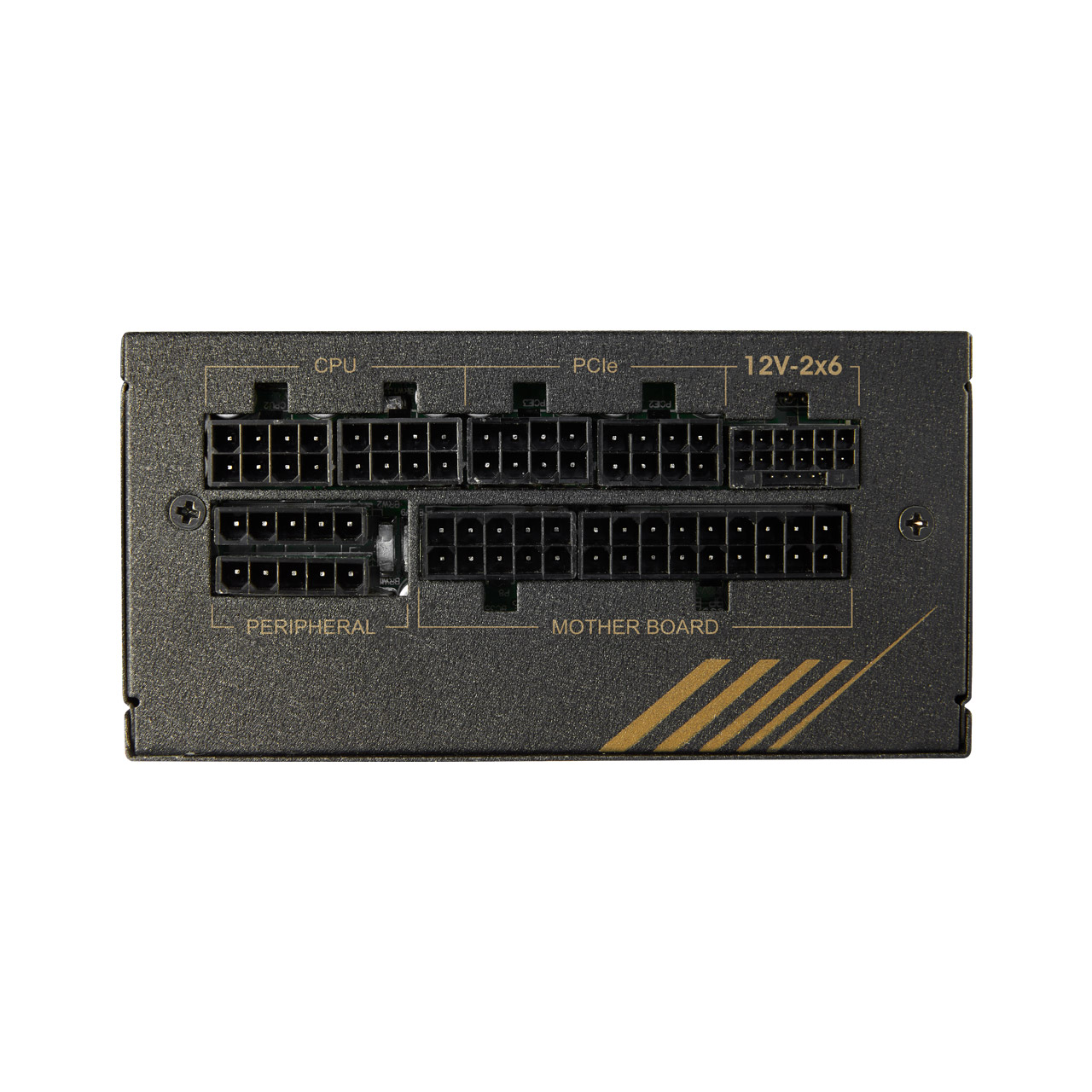

Advance Cable Management and Flat Ribbon Cables
Fully-modular design and flat ribbon cables provide easier installation. An ideal solution for applications with space constraints, enhancing overall airflow efficiency and cable management.

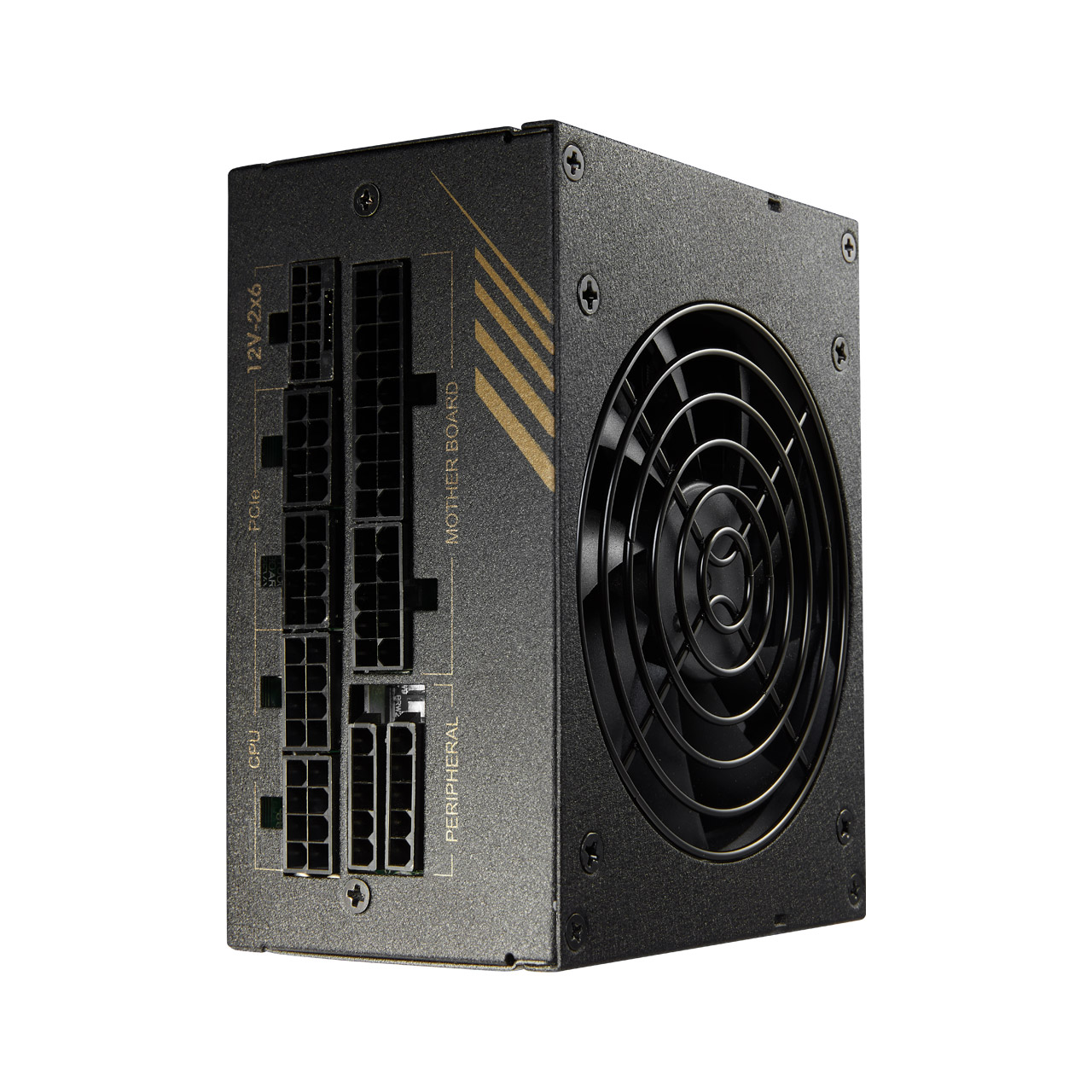

92mm Fan Optimized for Low-noise Operation
DAGGER PRO(ATX3.1) series is included an advanced semi-fanless design that will spin over 20% loading, make silent and reduce noise under maximum operation.
80 Plus® Gold Certification
DAGGER PRO(ATX3.1) series is a power supply with 80 PLUS® Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and as a result to reduce lots of electricity cost.
Powerful +12V Single Rail for your Graphics Cards
Graphics card is a component which needs greedy and stable power supporting most. The compact size DAGGER PRO(ATX3.1) series comes with a single +12V rail design that offers graphics cards full power individually and to avoid any overloading conditions.
High Compatibility for High Power
The DAGGER PRO(ATX3.1) series comes with a native PCIe 5.1 connector for the latest graphics cards and features dual CPU power connectors to support high-end motherboards for gaming enthusiasts.
Japanese Electrolytic Capacitors
DAGGER PRO(ATX3.1) series uses Japanese electrolytic capacitors to ensure a longer lifetime and protect your PSU from sudden power change!
Supports High-end Motherboards
Adapts to your individual requirements, not only does it fit into cases with the SFX form factor, but can also be installed in a simple steps into normal ATX, Micro-ATX or Mini-ITX cases.
Performance
AC/DC
AC Input | 100-240Vac~ 12-6A 50-60Hz (not for china) | ||||
| 200-240Vac~ 6A 50-60Hz (Only for china) | |||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A | 20A | 70.83A | 0.3A | 2.5A |
| Max Combined Power | 120W | 850W | 3.6W | 12.5W | |
| Total Power | 850W | ||||

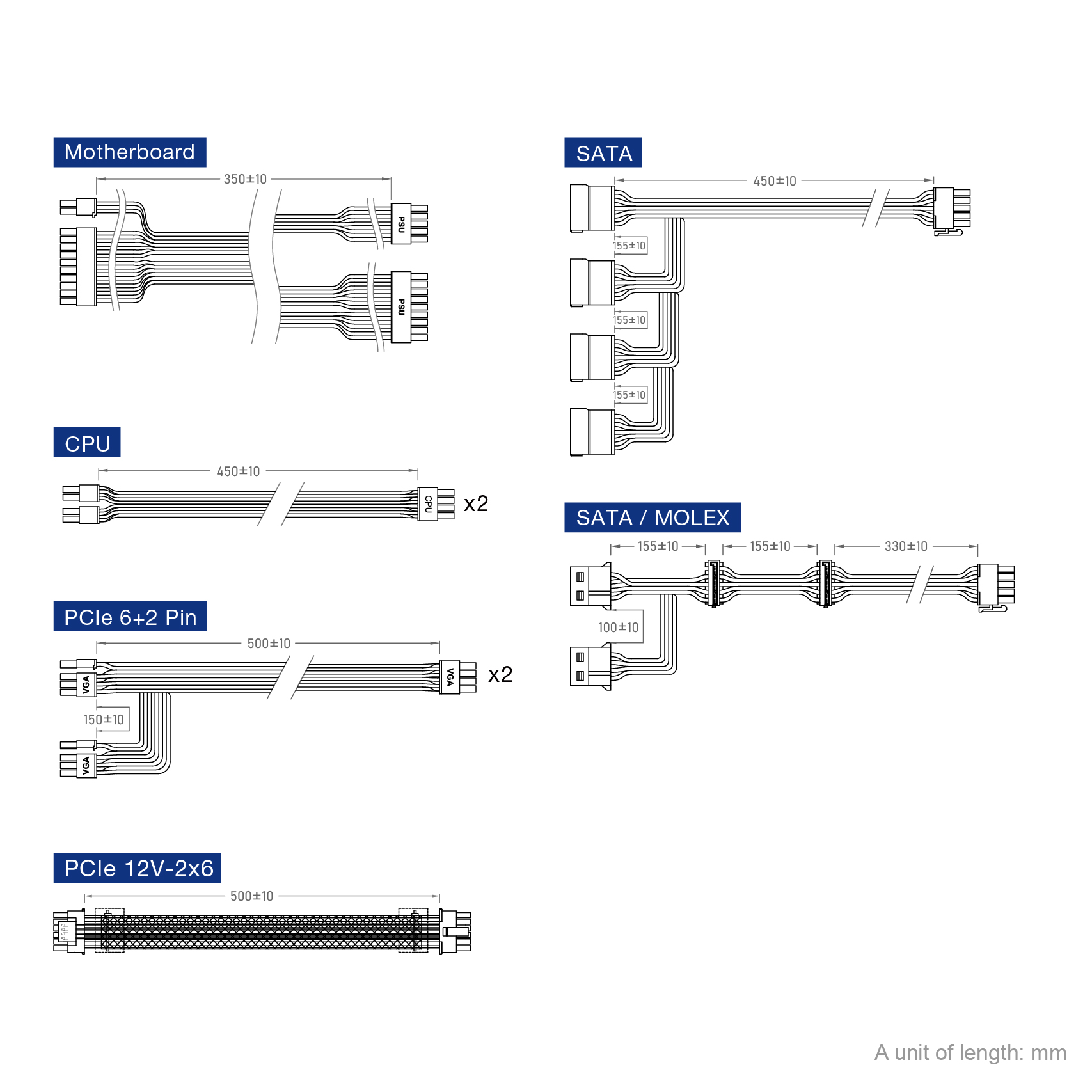

Cables
 |  |  |  |  |  | |
| MB 20+4 PIN | CPU 4+4 PIN | PCIe 6+2 PIN | PCIe 12V-2x6 | SATA | Molex (PERIPHERAL) | |
| Connectors | 1 | 2 | 4 | 1 | 6 | 2 |
Specifications
| Model | SDA2-850, GEN 5 |
|---|---|
| Rated Output Power | 850W |
| Form Factor | SFX |
| 80 PLUS Certification | Gold |
| Input Voltage | 100-240V |
| Input Current | 12-6A |
| Input Frequency | 50-60Hz |
| PFC | Active PFC |
| Efficiency | ≥90% at typical load |
| Fan Type | ball bearing fan,92mm |
| Dimensions(L x W x H) | 125 × 100 × 63.5 mm |
| Protection | OCP, OVP, SCP, OPP, OTP |
| Warranty | 10 Years |
