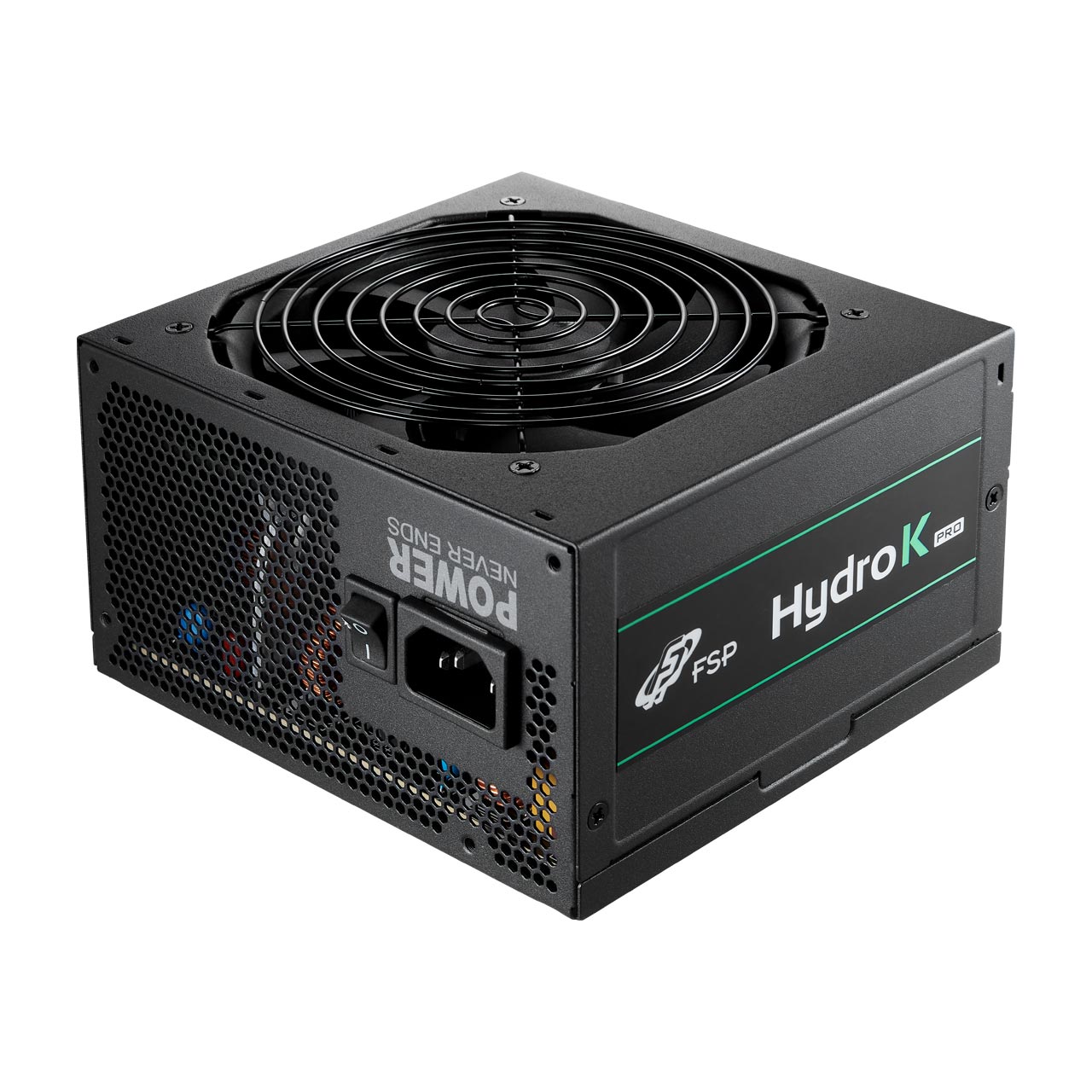

Hydro K PRO 850W
Hydro K PRO 850W
- Intel latest CPU ready
- Global safety approved
- Active PFC ≥ 0.9
- High efficiency ≧ 88%
- Powerful +12V single rail design
- Hold up time ≥ 17ms at 80% load
- Double layer EMI filter
- 120mm hydraulic bearing (HYB) fan
- +5V & 3.3V DC to DC module design
- All black cables
- Complete protections: OCP/OVP/OPP/SCP
Up-to-date Circuit Design
A dual forward topology integrated with active PFC and PWM technology and double EMI filter delivers full power and enhance stability to your system.
Stable DC to DC Output Quality
DC to DC modules with low ripple noise and prolongs system lifetime.
Double Layer EMI Filter
To reduce electromagnetic interference and suppress noise.
Low Noise, Less Heat
Hydro K PRO series is equipped with the 120mm hydraulic bearing fan (HYB) which makes optimum cooling and reduces noise. Moreover, the lifespan of fan is longer than standard one.
We know what builders need
+12V Single Rail Design
Designed for power-intensive VGA cards, provides strong power to any overloading condition.
80 Plus® Bronze Certification
With an 230V 80 Plus® rating, Hydro K PRO series delivers over 88% high efficiency.
Energy Related ErP/Eup 2013
Green Power! The total AC power consumption less than 5Vsb rail to meet the new EU Regulation ErP 2013 for modern systems.
Cables
 |  |  |  |  |  | |
| ATX 24 | 4+4 PIN | PCI-E 6+2 | SATA | Molex (PERIPHERAL) | Floppy | |
| Connectors | 1 | 2 | 4 | 8 | 2 | 1 |
AC/DC
| AC Input | 200-240Vac~ 6A 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A | 20A | 70.83A | 0.3A | 2.5A |
| Max Combined Power | 100W | 849.86W | 3.6W | 12.5W | |
| Total Power | 850W | ||||
Specifications
| Model | HD2-850 |
|---|---|
| Rated Output Power | 850W |
| Form Factor | ATX |
| 80 PLUS Certification | 80 PLUS® 230V Bronze |
| Input Voltage | 200-240V |
| Input Current | 6A |
| Input Frequency | 50-60Hz |
| PFC | Active PFC |
| Efficiency | ≥88% at typical load |
| Fan Type | HYB Fan, 120mm |
| Dimensions(L x W x H) | 150 x 140 x 86 mm |
| Protection | OCP, OVP, SCP, OPP |
| Warranty | 5 Years |
