M580
- 270° panoramic views curved glass exterior design
- Supporting back-connect motherboard(BTF)
- Exquisite rounded chamber design
- Equipped with reverse ARGB silent fans
- Supporting up to 360mm radiator
- Supporting up to 445mm graphics cards
- Lighting fast Type-C
Sleek and Exquisite
The FSP M580 showcases a panoramic tempered glass design and adopting a rounded chamfer design, offering an exclusive exterior to highlight your system’s potential while consistently enhancing the gaming atmosphere.
Exceptional Cooling Power and Performance
Featuring four sets of powerful ARGB fans, all controllable via the motherboard, this setup delivers stunning lighting effects while optimized cooling ensures peak system performance and stability.
120mm x3
REVERSE ARGB FANS
The side features triple reverse ARGB silent fans with PWM controller, while the rear is equipped with a PWM ARGB fan.
360mm High
RADIATOR
Supporting up to 360mm radiator
Unleash Boundless Gaming Power
Supporting ATX (back-connect motherboard), M-ATX, and Mini-ITX motherboards, the M580 case accommodates graphics cards up to 445mm and radiator up to 360mm, providing the flexibility for an immersive, unrestricted gaming experience.

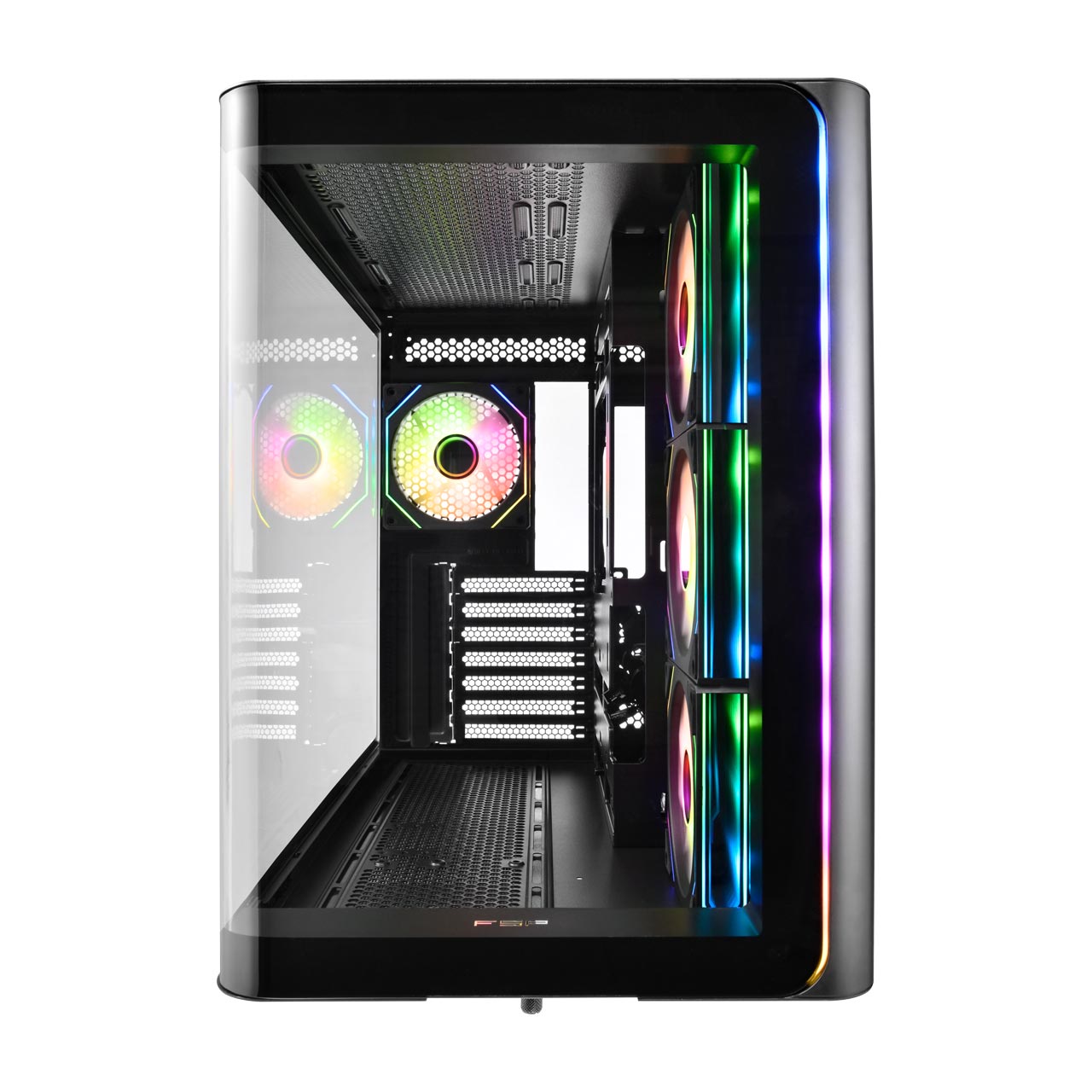

270° Panoramic Views
The seamless curved glass ensures stunning aesthetics from both the front and side views.
Ample Space for Future Expansion
The M580 offers a spacious design, accommodating all your current gear while leaving room for future upgrades.
STORAGE
SSD x3HDD x2
USB PORT
Type-C / USB3.0 x 2
PSU
240mm PSU
Specifications
| Model Name | M580-BA / M580-WA |
|---|---|
| Type | ATX Mid Tower |
| Color | Black, White |
| Materials | 0.7mm SPCC, Curved Glass x 1 |
| Weight | 7.5kg |
| Dimension DxWxH (mm) / (inch) | 460x285x398mm |
| Maximum CPU Cooler Height | 160mm |
| VGA Card Length | 445mm |
| Expansion Slots | 7 |
| MotherBoard Support | ATX(BTF), M-ATX, Mini-ITX |
| External I/O port | USB3.0 x 2, Type-C |
| Power Supply Type | 240mm ATX |
| 3.5“ HDD | 1+1 |
| 2.5" SSD | 2+1 |
| Fan Including(Pre-installed) | Side:120mm reverse PWM ARGB x 3 with PWM controller Rear: 120mm PWM ARGB x 1 |
| Fan&Water Cooler Support | Side: 120/140mm x 2 or 280mm Radiator Top: 120mm x 3 or 140mm x 2 or 360mm Radiator Bottom: 120mm x 3 or 140mm x 2 or 360mm Radiator Rear: 120mm x 1 |
| Max Radiator Support | 360mm |
| Container Information | CBM:0.0842 |
| EAN/UPC | EAN Black: 4711498480835 White: 4711498480842 UPC Black: 845685015433 White: 845685015440 |
