M580 PRO
- 270° panoramic views curved glass exterior design
- Smart temperature display - ZENFAN(M580PRO only)
- Supporting back-connect motherboard
- Exquisite rounded chamber design
- Equipped with reverse ARGB fans
- Supporting up to 360mm radiator
- Supporting up to 445mm graphics cards
- Lighting fast Type-C

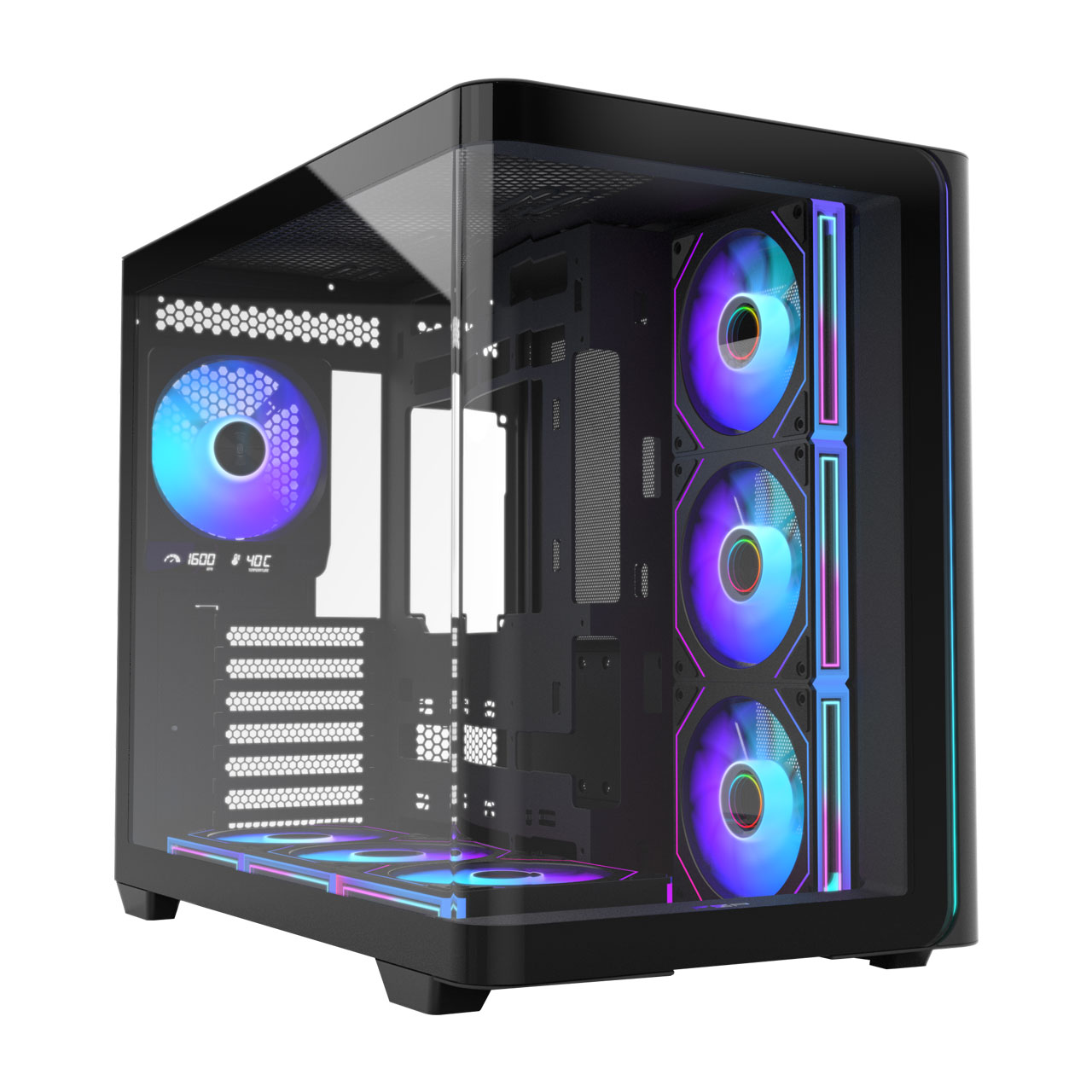

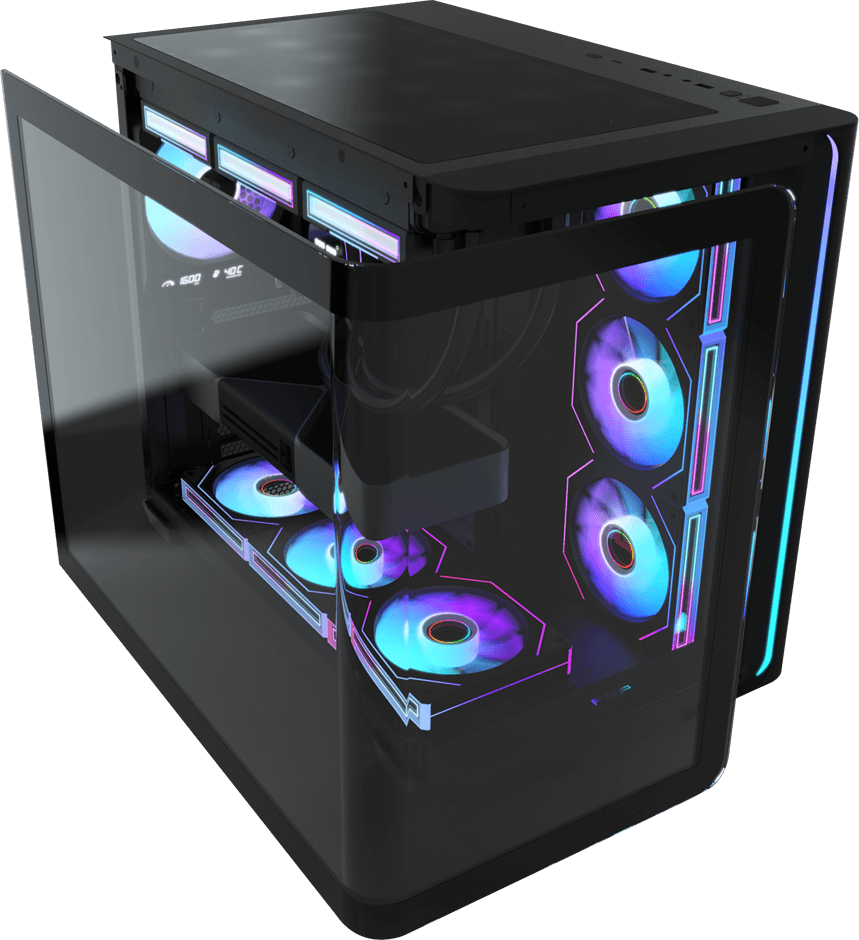

270° Panoramic View
The M580 PRO features a complete curved tempered glass panel, offering an panoramic view from front to side, delivering a seamless, perfect visual immersion.
The curved glass of the M580 PRO uses the most advanced manufacturing process, enhancing both transparency and structural strength.
M580 PRO not only focuses on aesthetics but also prioritizes your safety.
A Perfect Blend of Aesthetics and Durability
Built on the foundation of the M580, the M580 PRO is fully equipped with CF12FAD modular block fans, continuing the cable-free experience.
In addition to its ARGB lighting and infinity mirror fan, the M580 PRO features long-lasting dual ball bearing, delivering both stunning aesthetics and exceptional durability.
Stay Ahead with
Real-Time Cooling

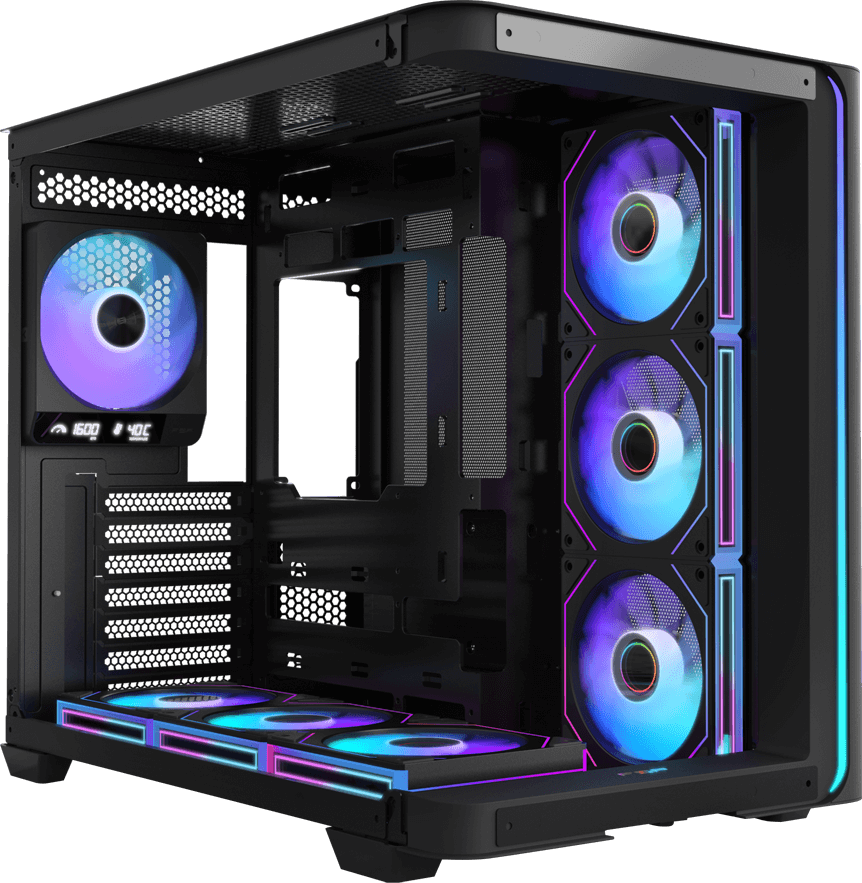

M580 PRO, equipped with the innovative ZENFAN, allows real-time monitoring of fan speed and internal case temperature. Unlike standard 120mm fans, ZENFAN adopts a longer 120x140mm design that maximizes rear space without interfering with graphics card installation.
No Compromise on Cooling

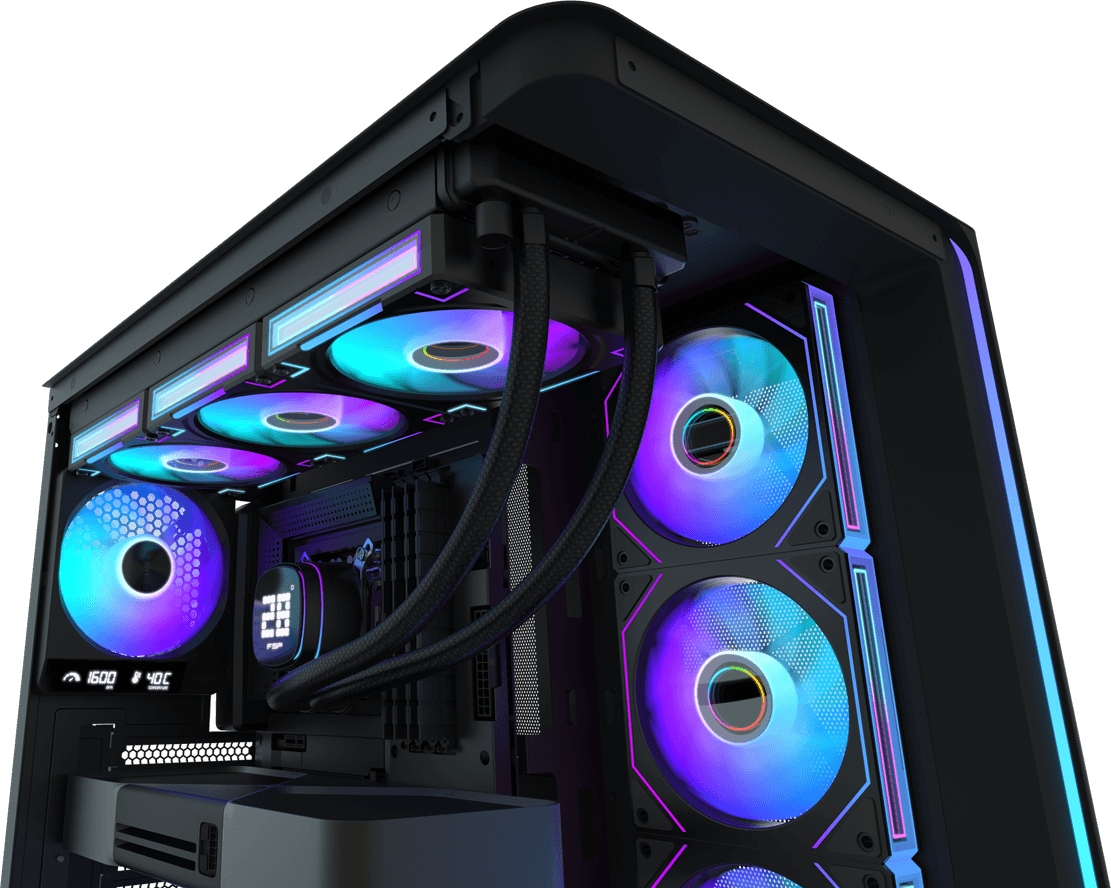

The M580 PRO supports liquid cooling radiators ranging from 240 to 360 mm. Additionally, it supports air coolers up to 160 mm in height, covering most types available on the market.
We Understand Your Demands for Aesthetics
The M580 PRO fully supports the next-generation back-connect motherboard, eliminating the hassle of cable management, as all cables are hidden on the other side, out of view.
With its seamless curved glass and modular block fans, it delivers a cable-free, flawless visual experience.
Pursuing Performance,
We Think Alike
The M580 PRO supports high-end graphics cards up to 445 mm in length.
Whether you’re powering through with an RTX 5090, the M580 PRO handles it effortlessly.
Storing Your Precious Memories
The M580 PRO supports up to 1 x 3.5" HDD and 2 x 2.5" SSDs, allowing for flexible expansion of your storage devices anytime.
Specifications
| Model Name | M580P-BA / M580P-WA |
|---|---|
| Type | ATX Mid Tower |

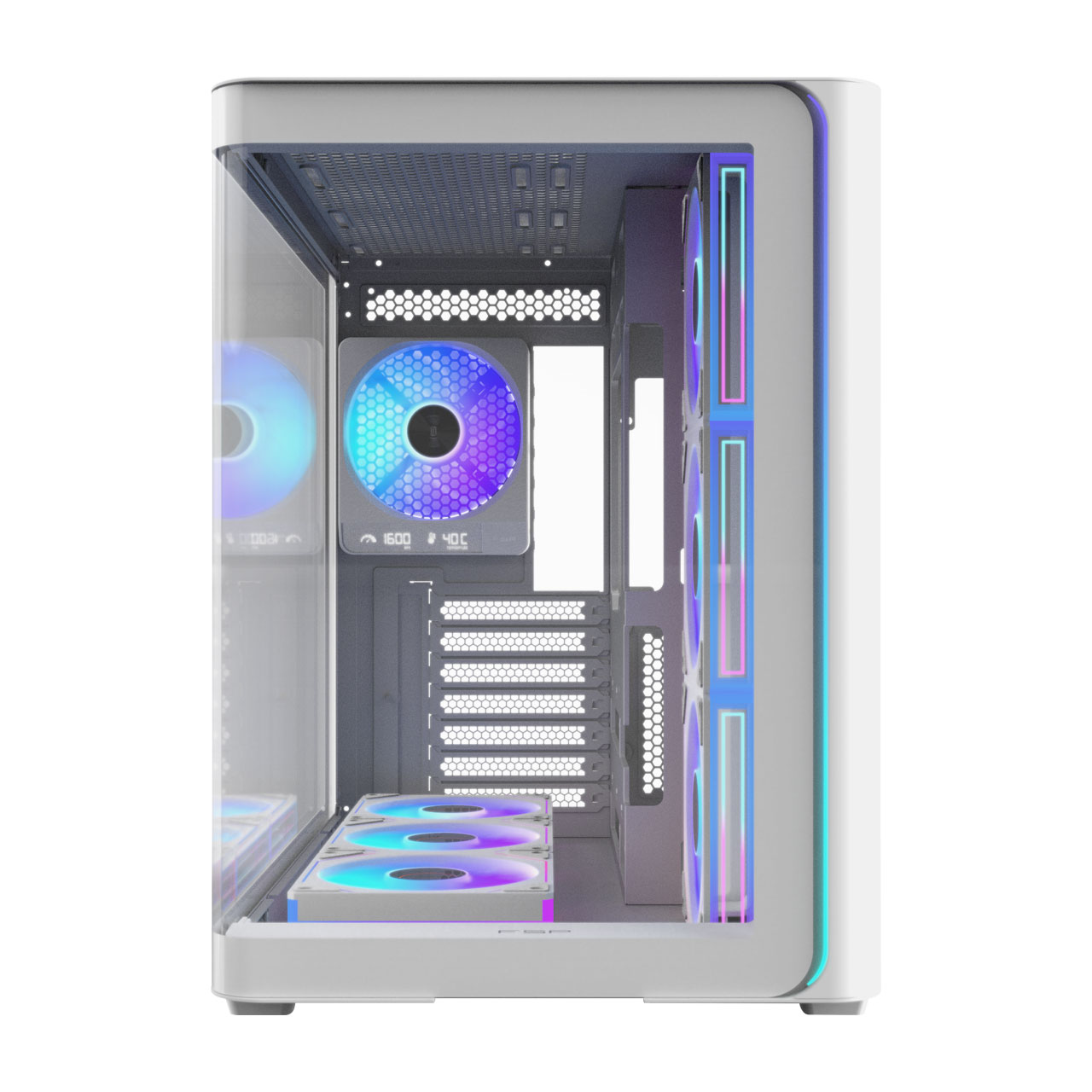

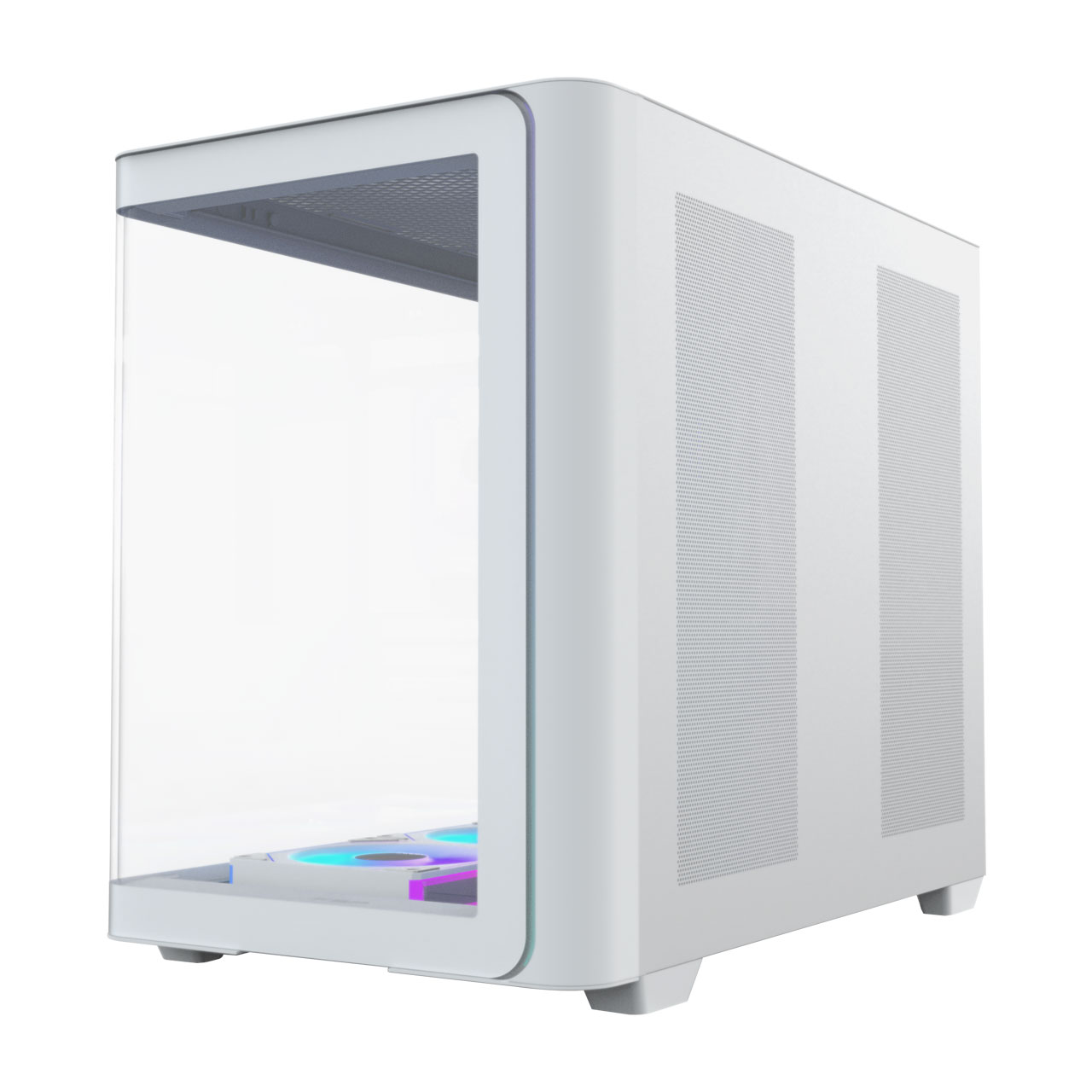

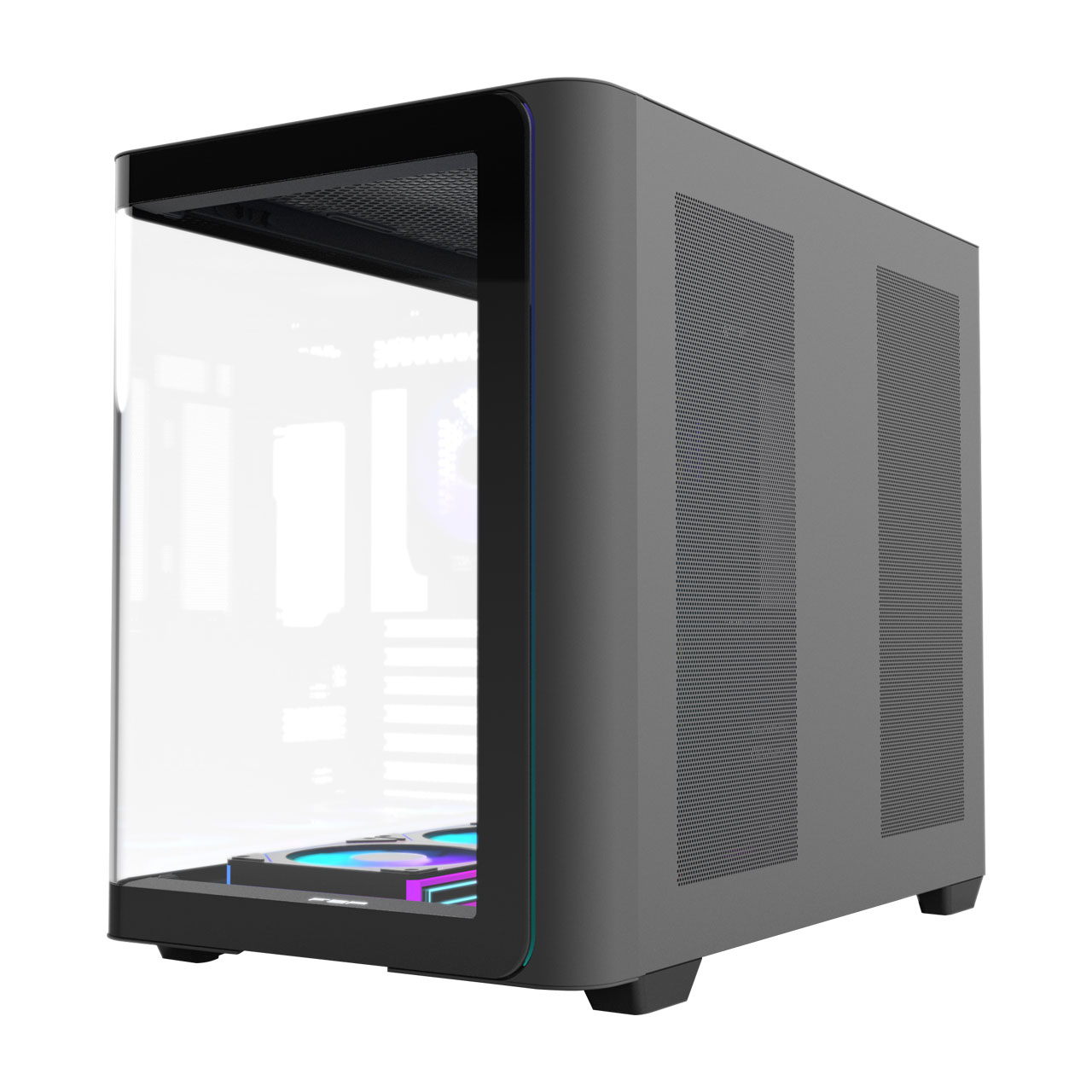

| Color | Black, White |
| Materials | 0.7mm SPCC, Curved Glass x 1 |
| Weight | 8.04KG |

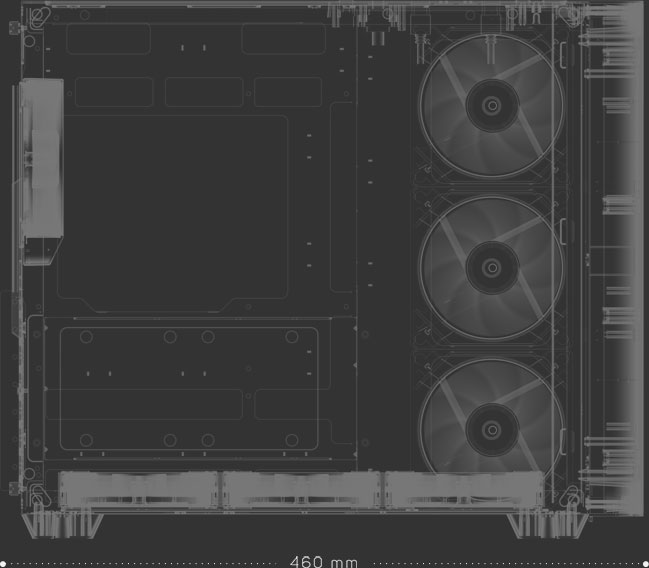

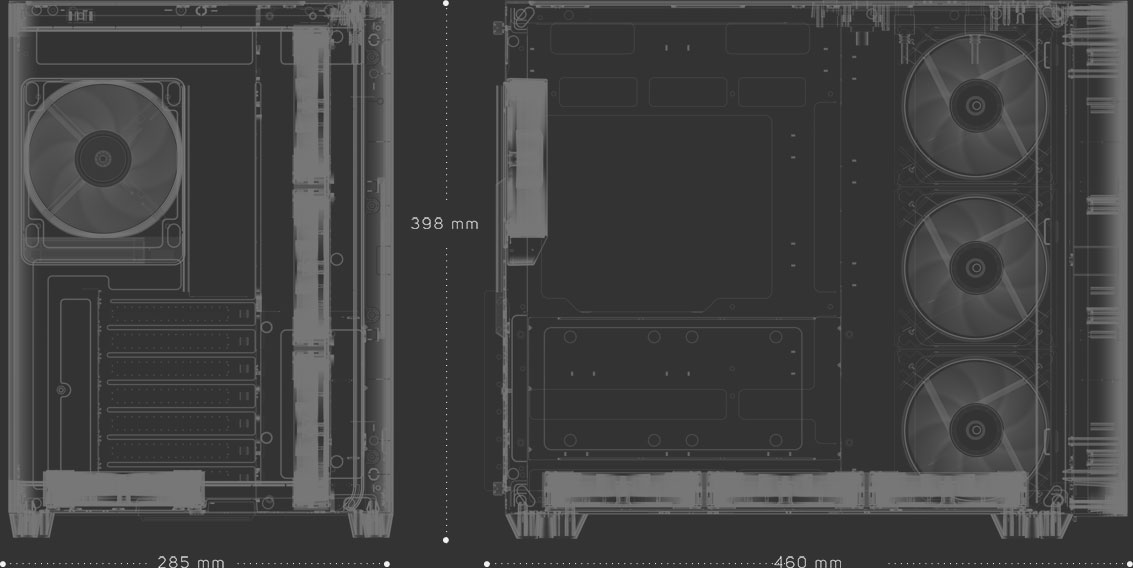

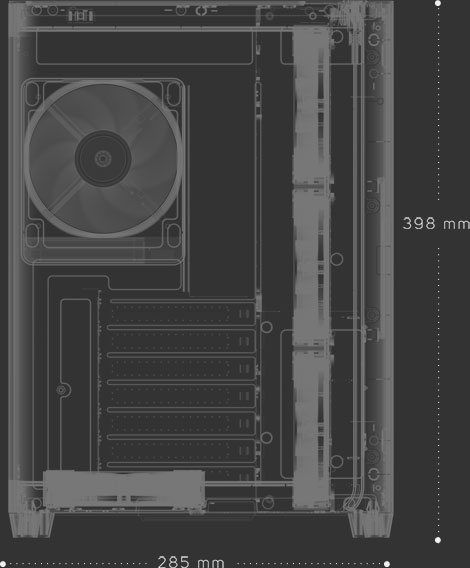

| Dimension DxWxH (mm) / (inch) | 460x285x398mm |
| Maximum CPU Cooler Height | 160mm |
| Graphics Card Length | 445mm |
| Expansion Slots | 7 |
| MotherBoard Support | ATX(back-connect motherboard), M-ATX, Mini-ITX |
| External I/O port | USB3.0 x 2, Type-C |
| Power Supply Type | 240mm ATX |
| 3.5“ HDD | 1 |
| 2.5" SSD | 2 |
| Fan Including(Pre-installed) | Side:120mm reverse Daisy-Chain ARGB x 3 with PWM controller Bottom: 120mm reverse PWM ARGB x 3 Rear: 120mm PWM ARGB x 1 (ZENFAN) ***Press and hold the RGB button to switch to sync mode. |
| Fan&Water Cooler Support | Side: 120mm x 3 or 140mm x 2 or 360mm Radiator Top: 120mm x 3 or 140mm x 2 or 360mm Radiator Bottom: 120mm x 3 or 360mm Radiator Rear: 120mm x 1 |
| Max Radiator Support | 360mm |
| Container Information | CBM:0.0842 |
| EAN/UPC | EAN Black: 4711498482655 White: 4711498482662 UPC Black: 845685016430 White: 845685016447 |
Download
M580-User Manual.pdf
