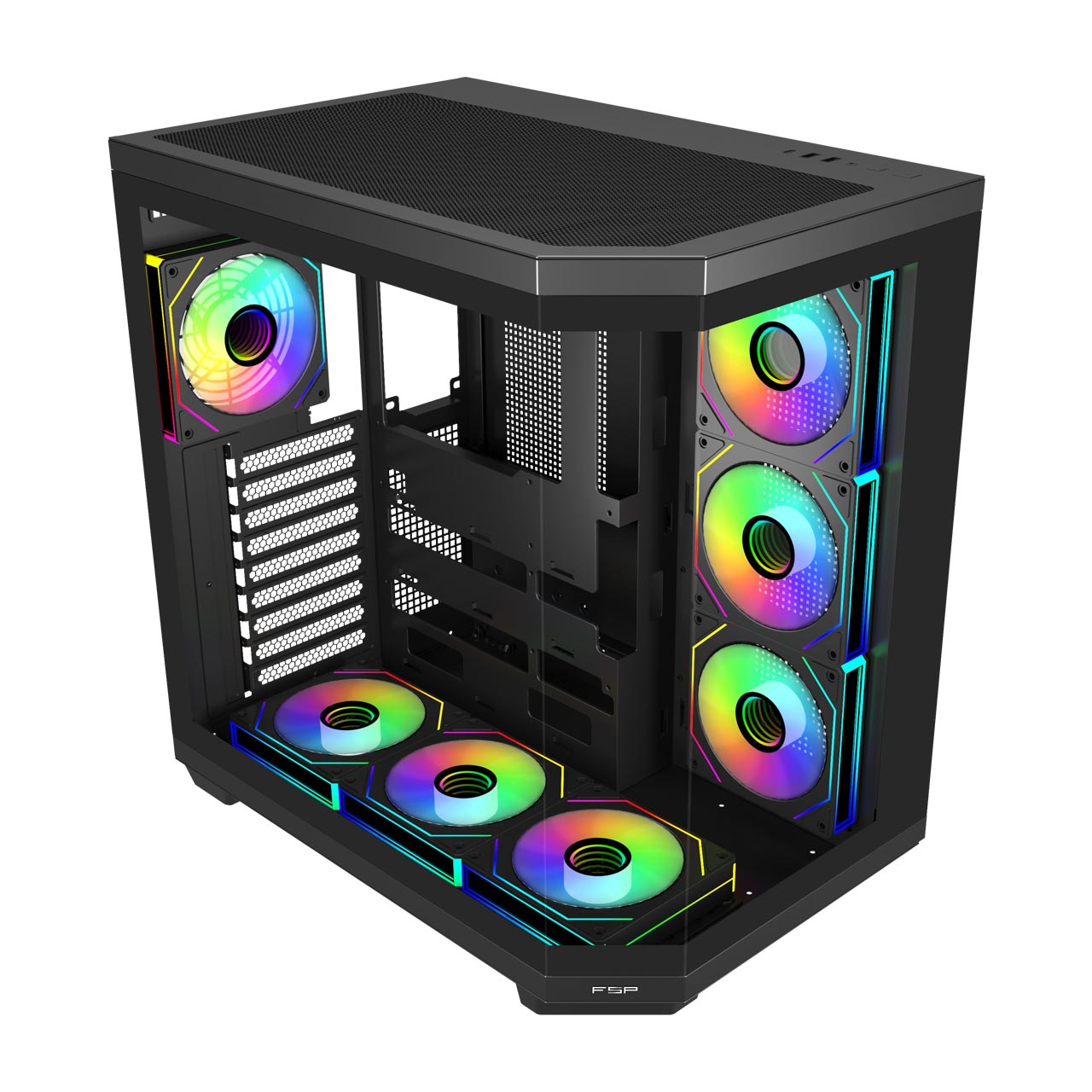

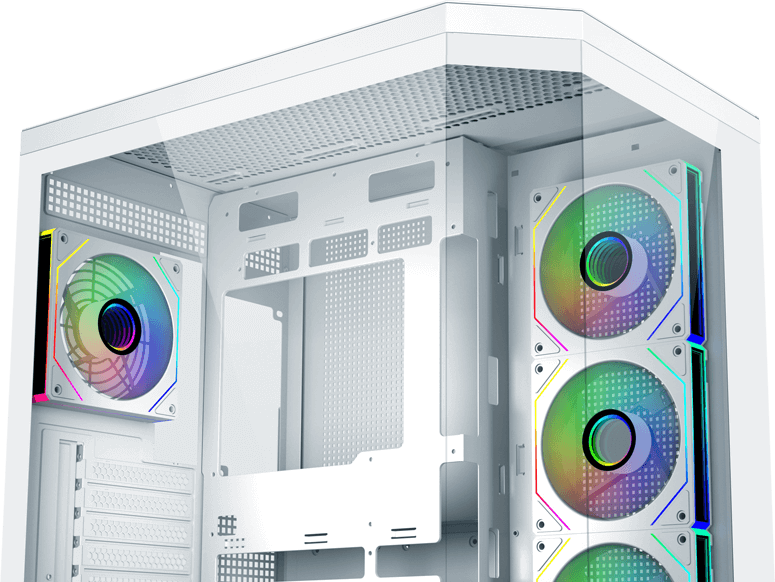

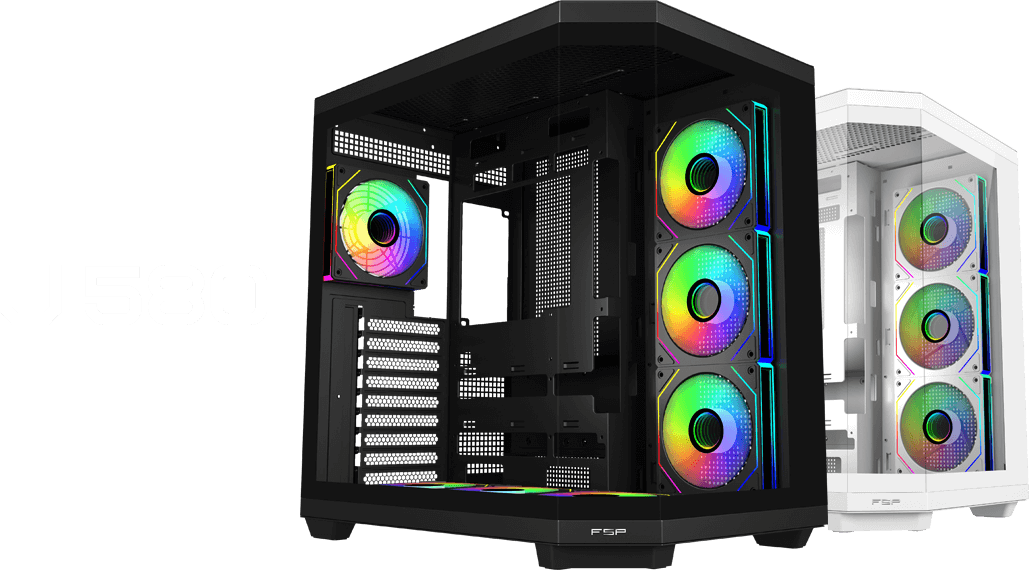

The U580 Three-Glass PC Case redefines showcase aesthetics with tempered glass panels on the front, and side. Its sleek, modern design offers a panoramic view of your build while supporting high-performance components and optimized airflow.

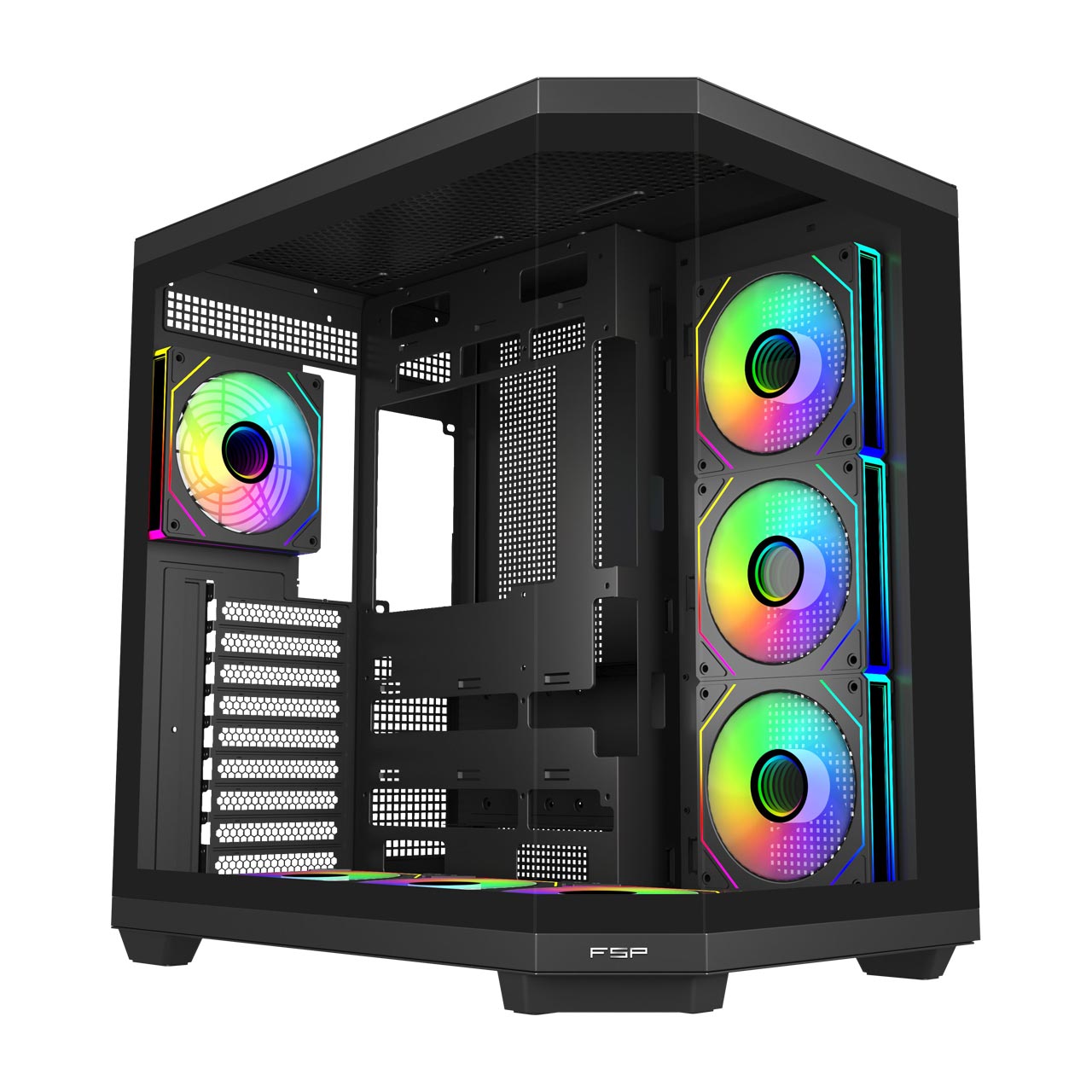

The side and bottom come pre-installed with six 120mm PWM ARGB fans, while the rear features a 120mm ARGB fan.
Supports up to 160mm CPU cooler.
It supports dual high-end graphics cards.
Supports up to 360mm radiators on side, top and bottom panels.

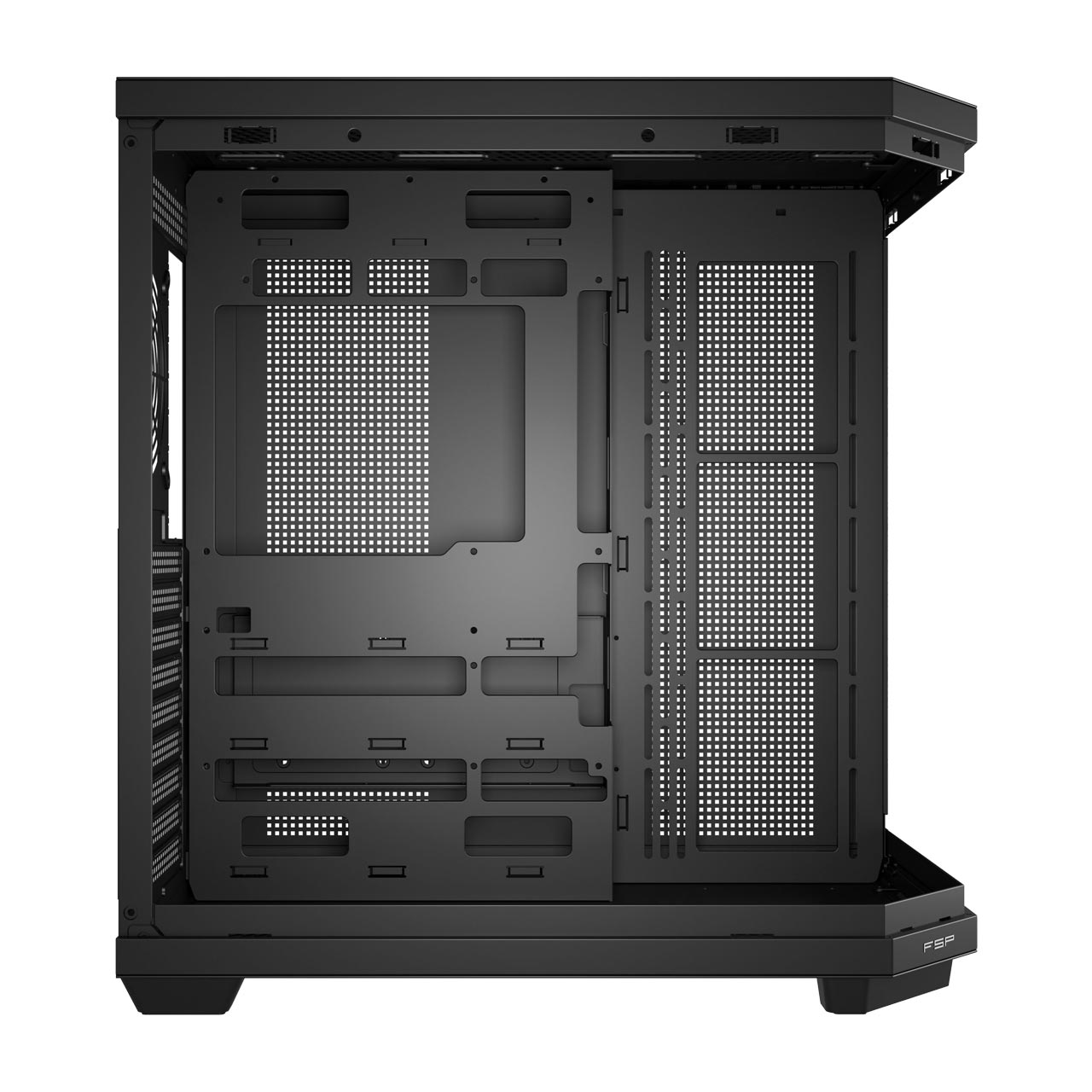

Compatible with ATX (BTF), M-ATX, and Mini-ITX motherboards, the U580 features built-in cable routing for clean back-connect setups. With seven pre-installed 120mm ARGB fans, it delivers both striking visuals and high-efficiency cooling.

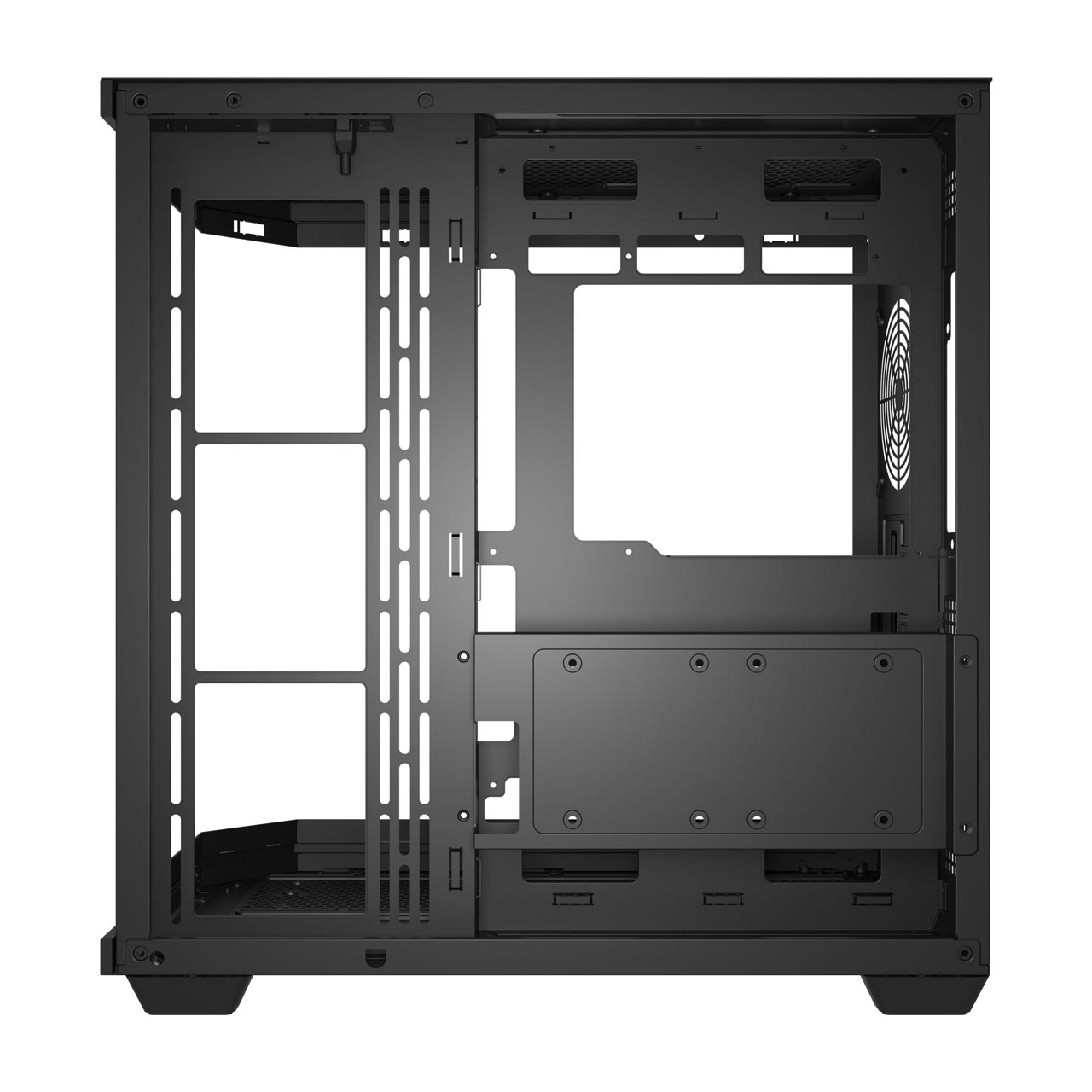

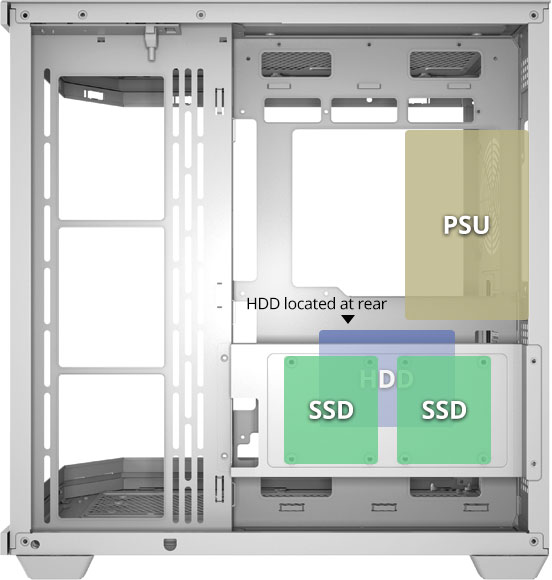

Designed with a dual-chamber layout, the U580 keeps the PSU, hard drives, and cables neatly tucked away, delivering a clean and clutter-free build. Combining refined aesthetics with high-performance potential, it features tempered glass panels on three sides, showcasing your components in style.
| Model Name | U580-BA / U580-WA |
|---|---|
| Type | ATX Ultra Tower |

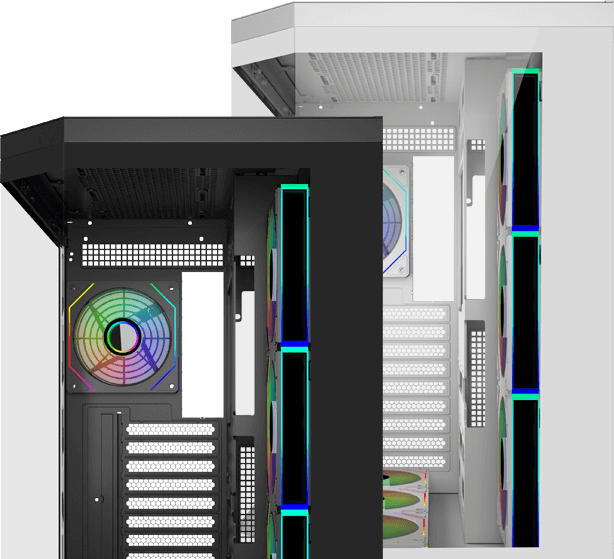

| Color | Black, White |
| Materials | 0.7mm SPCC, Glass x 3 |
| Weight | 8.33KG |
| Dimension DxWxH (mm) / (inch) | 426x285x453mm |
| Maximum CPU Cooler Height | 160mm |
| Graphics Card Length | 415mm |
| Expansion Slots | 9 |
| MotherBoard Support | ATX(BTF), M-ATX, Mini-ITX |
| External I/O port | USB3.0 x 2, Type-C |
| Power Supply Type | 240mm ATX |
| 3.5“ HDD | 1 |
| 2.5" SSD | 2 |
| Fan Including(Pre-installed) | Front: Side:120mm reverse PWM ARGB x 3 with PWM controller Bottom: 120mm reverse PWM ARGB x 3 Rear: 120mm ARGB x 1 |
| Fan&Water Cooler Support | Side:120mm x 3 or 140mm x 2 or 360mm Radiator Top: 120mm x 3 or 360mm Radiator Bottom: 120mm x 3 or 240mm Radiator Rear: 120mm x 1 |
| Max Radiator Support | 360mm |
| EAN/UPC | EAN B:4711498482051 W:4711498482068 UPC B:845685016089 W:845685016096 |
