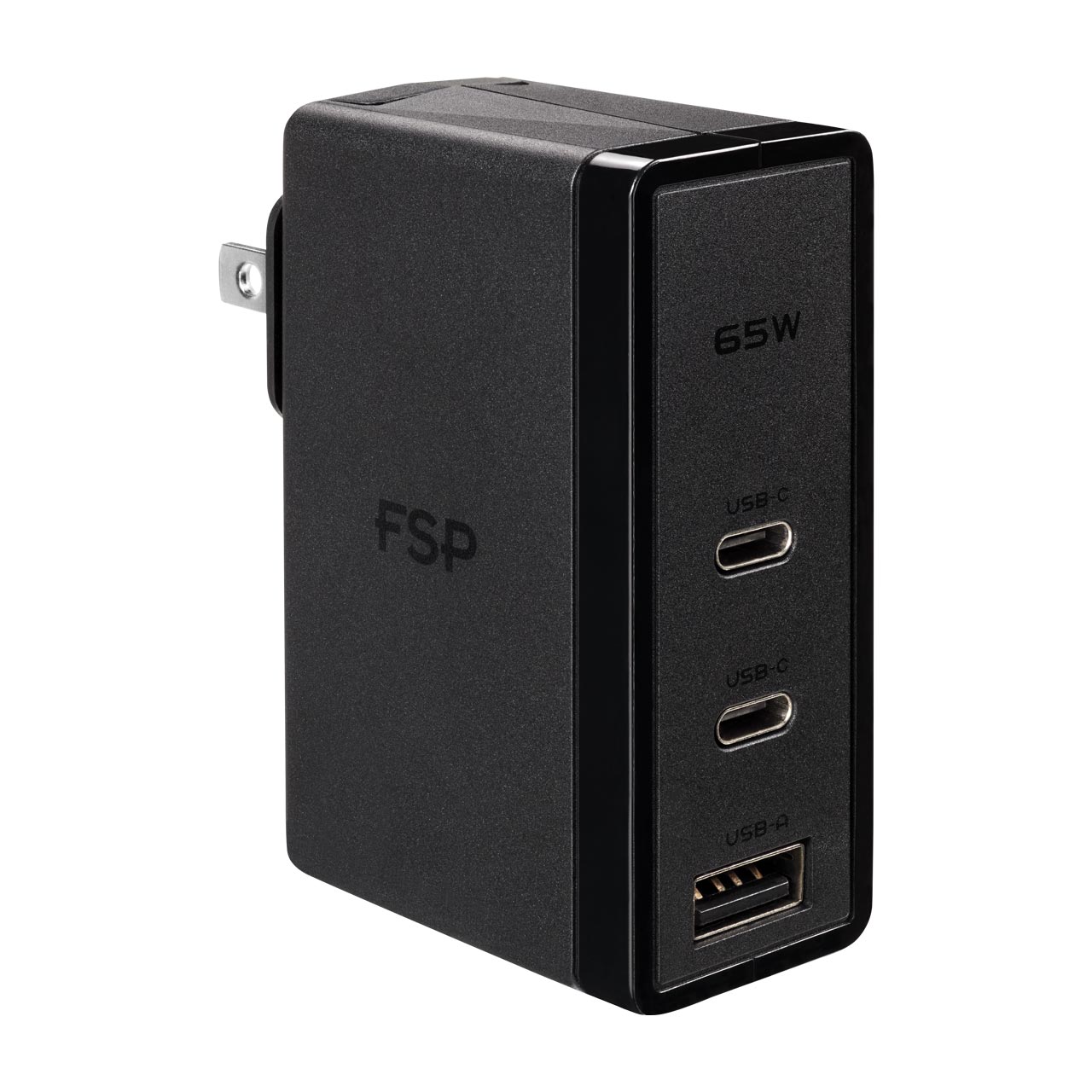

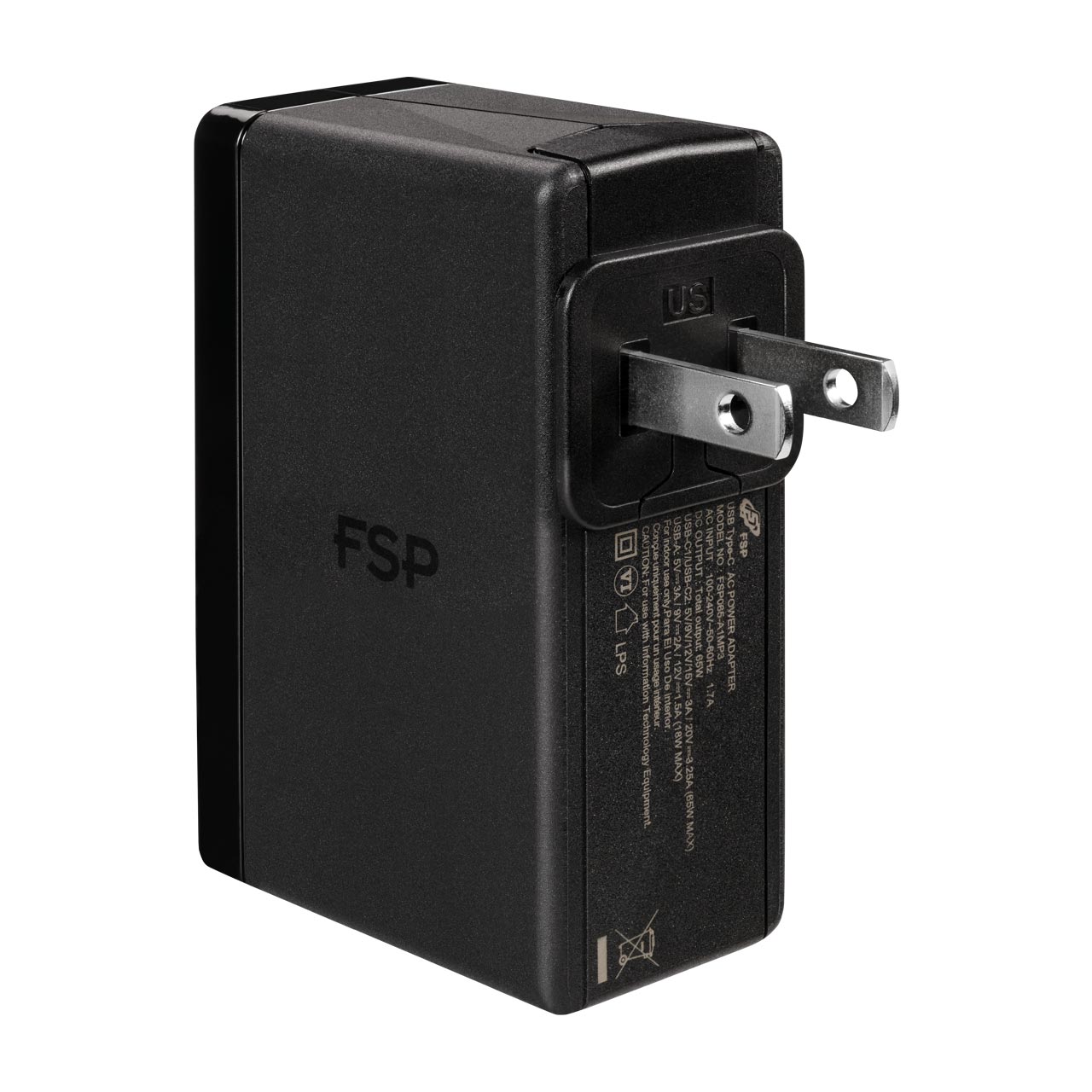

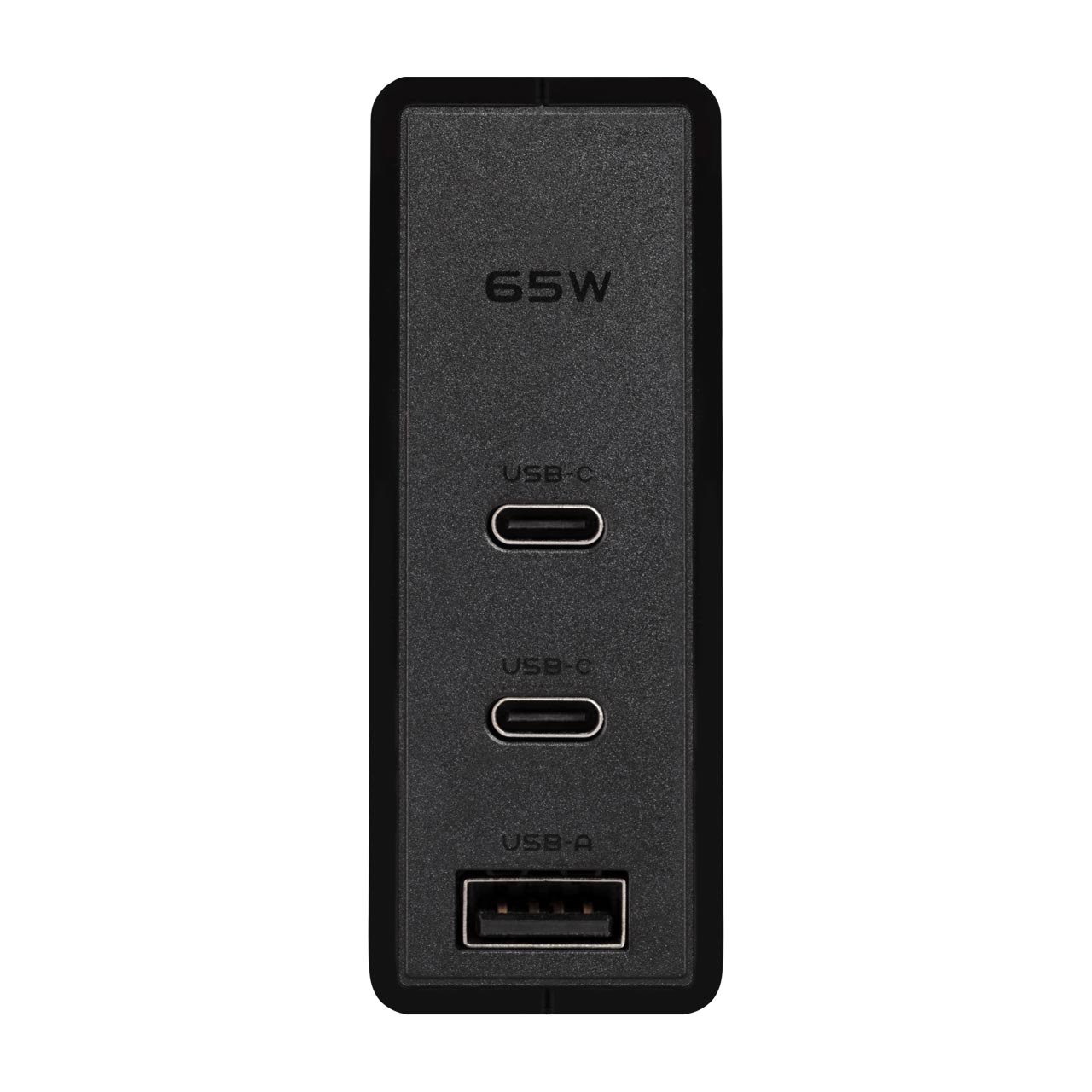

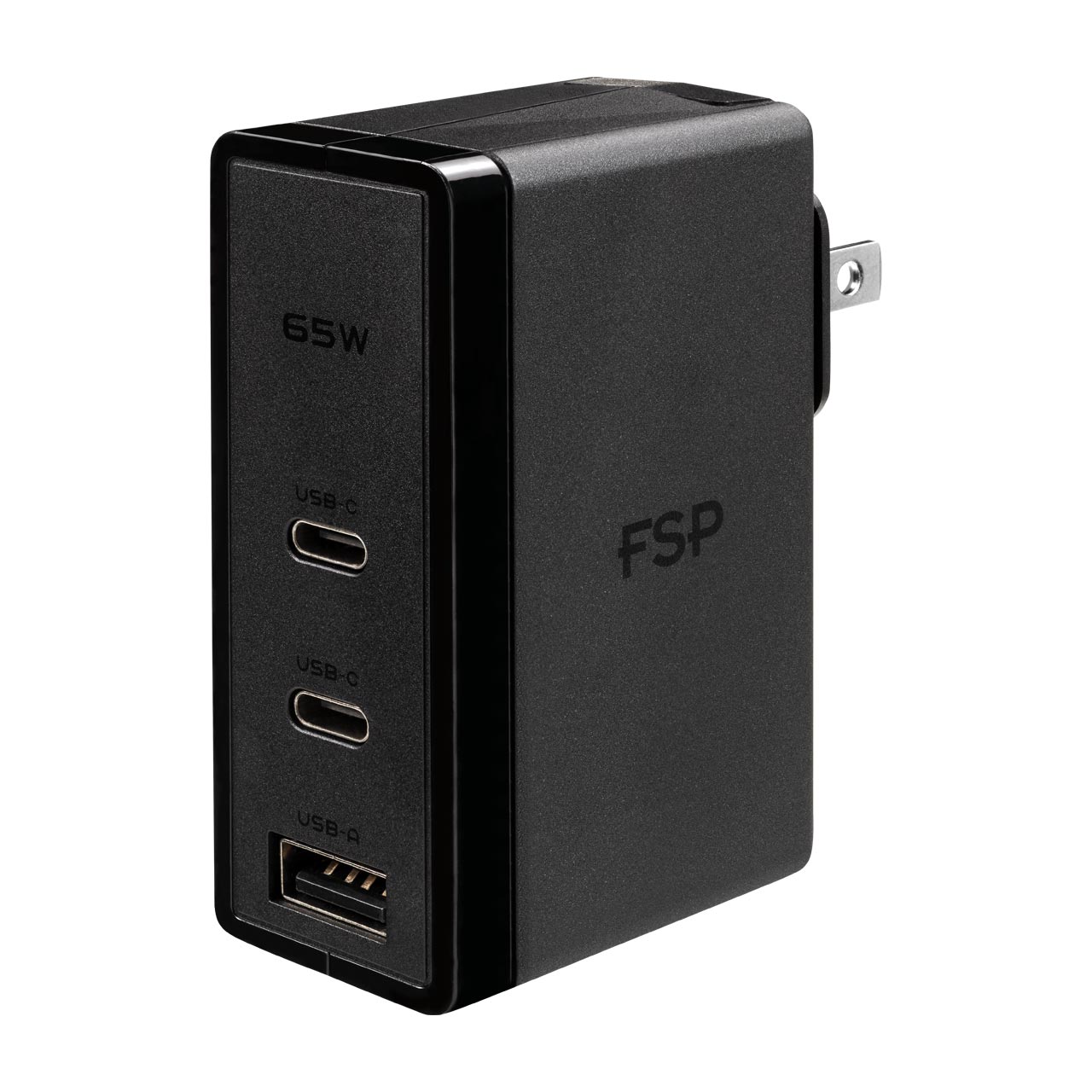

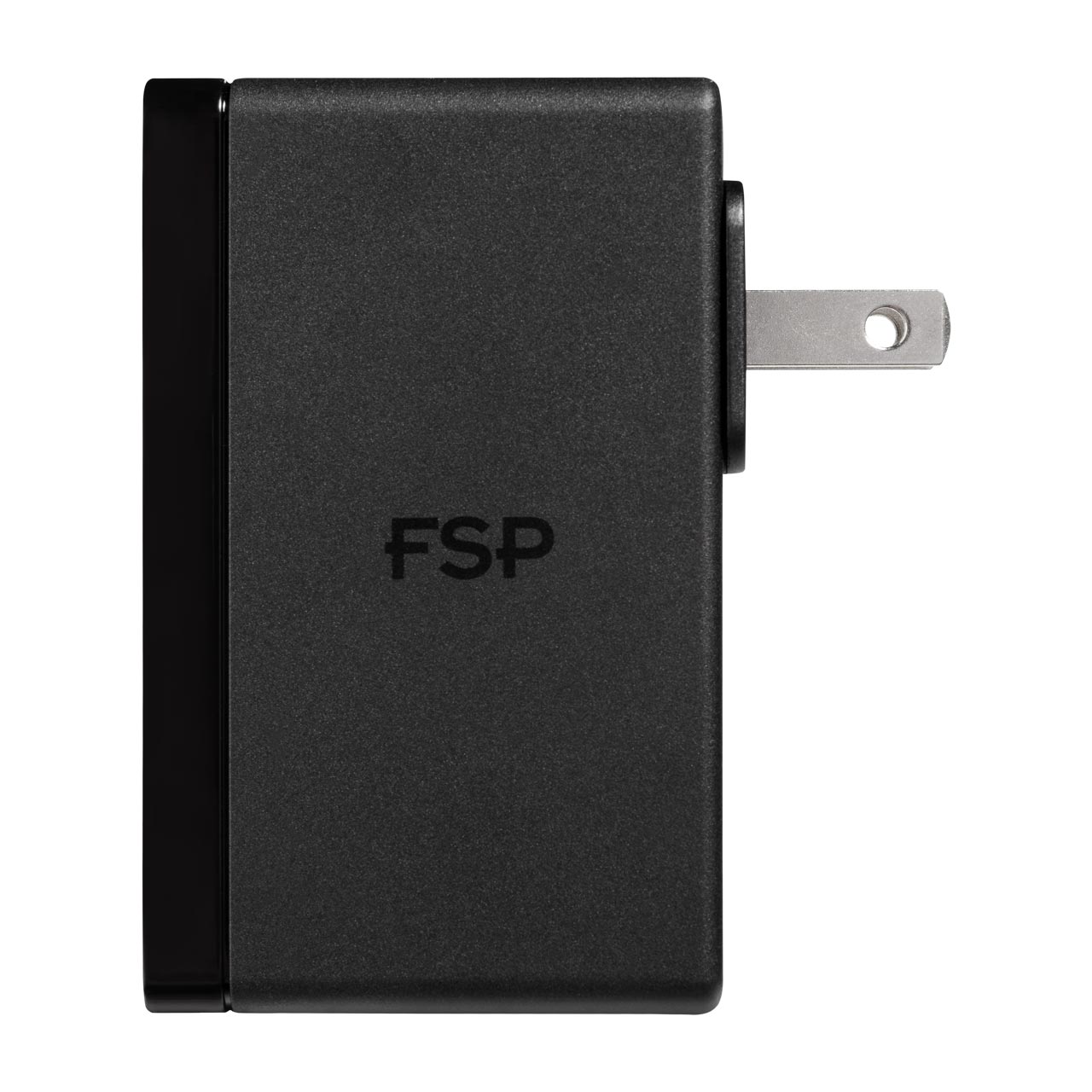

USB 65C2
- High power output density
- Compact design for space-saving
- Universal AC Input 100V to 240V

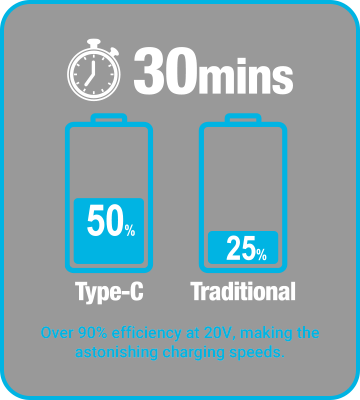

- Average efficiency more than 90% at 20V output
- Automatically detects and delivers 5V/9V/12V/15V/20V
- Compatible with USB type C smart phones, tablets, laptops and computers
- Supports full protections SCP / OVP / OPP / OTP

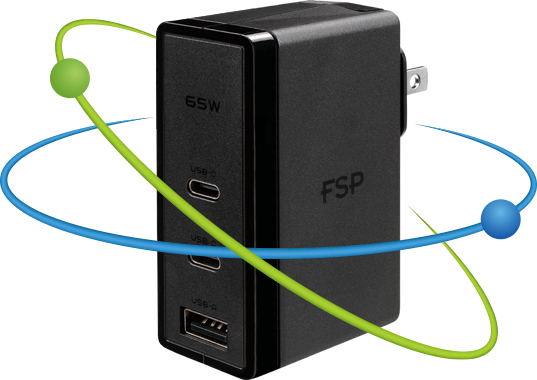

Ultra-Compact Yet Powerful
Embrace the perfect blend of portability and strength with FSP USB 65C2.
Smart Output for Your Device Needs
Automatically detects and delivers 5V, 9V, 12V, 15V, or 20V based on your device's needs.


Compact & Travel-Ready

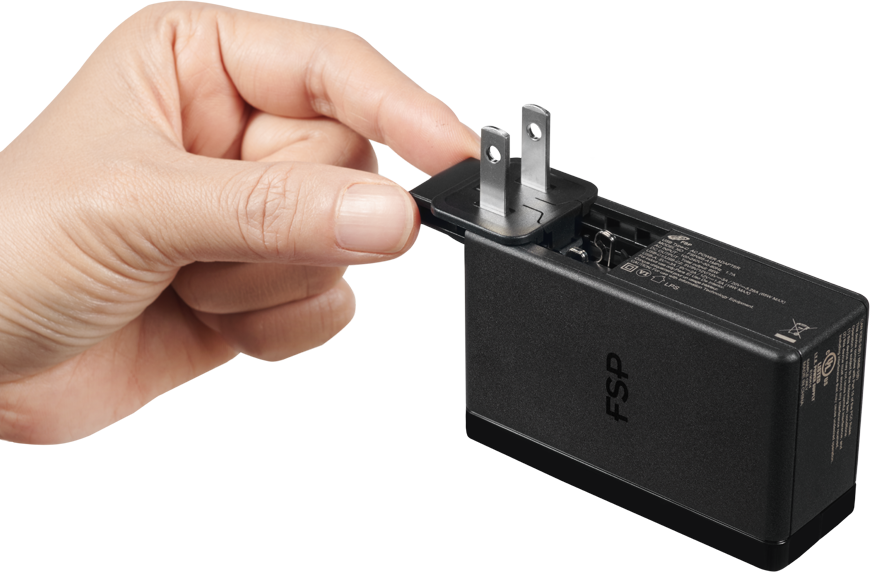

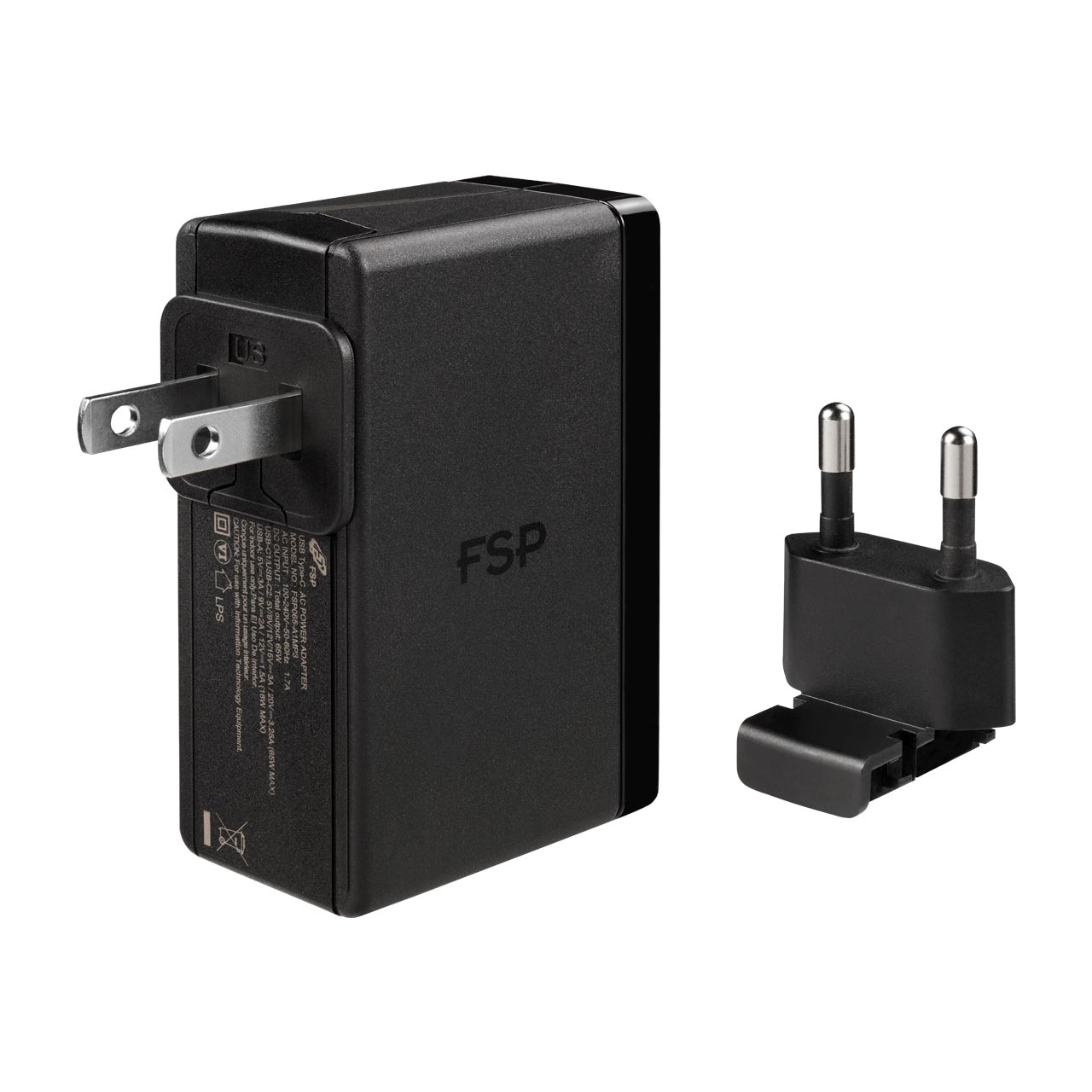

Equipped with easily swappable plug heads (US and EU), this power adapter is perfect for international travelers and global business users.

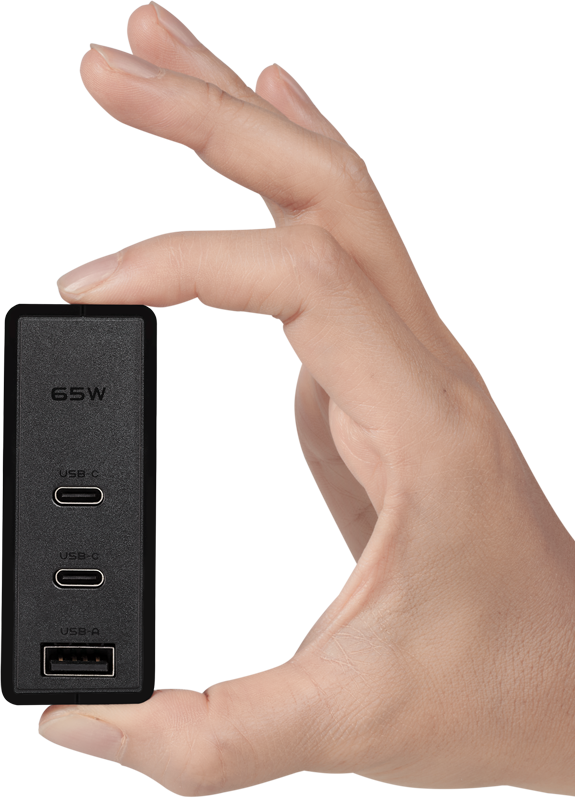

Ultra Small & Light
Easy to carry anywhere, ideal for daily use or travel.

Multiple Safety Protection
Certified with multiple circuit protections, including Over Voltage Protection (OVP), Over Temperature Protection (OTP), Over Power Protection (OPP), and Short Circuit Protection (SCP).


Tip Finder
Specifications
Model | FSP065-A1MP3 |
---|---|
Rated Output Power | 65W |
Input Voltage | 100-240Vac |
Input Current | 2.5A |
Input Frequency | 50-60Hz |

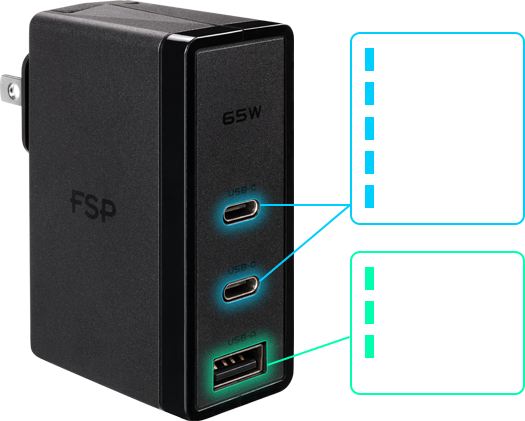

Output Current | USB-C: 5V / 3A; 9V / 3A; 12V / 3A; 15V / 3A; 20V / 3.25A USB-A: 5V / 3A; 9V / 2A; 12V / 1.5A (18W MAX) |
Efficiency | > 90% at 20V output |

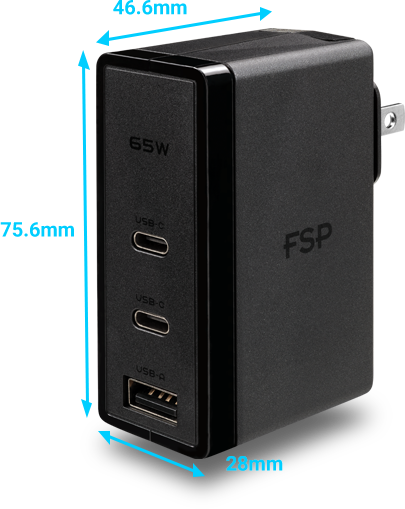

Dimensions (LxWxH) | 75.6X46.6X28mm |
Unit Weight | 90g |
Protection | SCP / OVP / OPP / OTP |
Safety Approval | FCC / UL / BSMI |
