The Future is Now：ATX 3.1 Ready

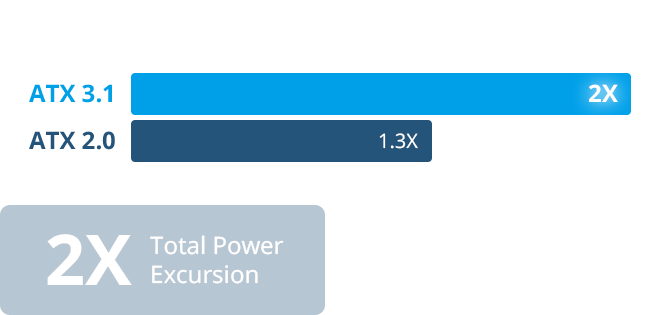

Following the latest ATX 3.1 regulation, this series supports 2 x total power excursion, and the hold-up time complies Intel®’s recommended level to provide PC system a high reliability.
Home
Products Power Supply

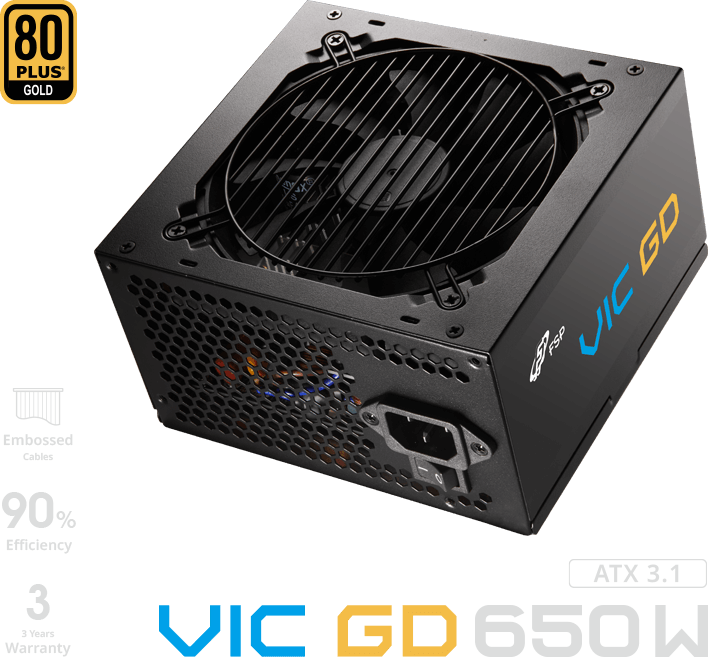

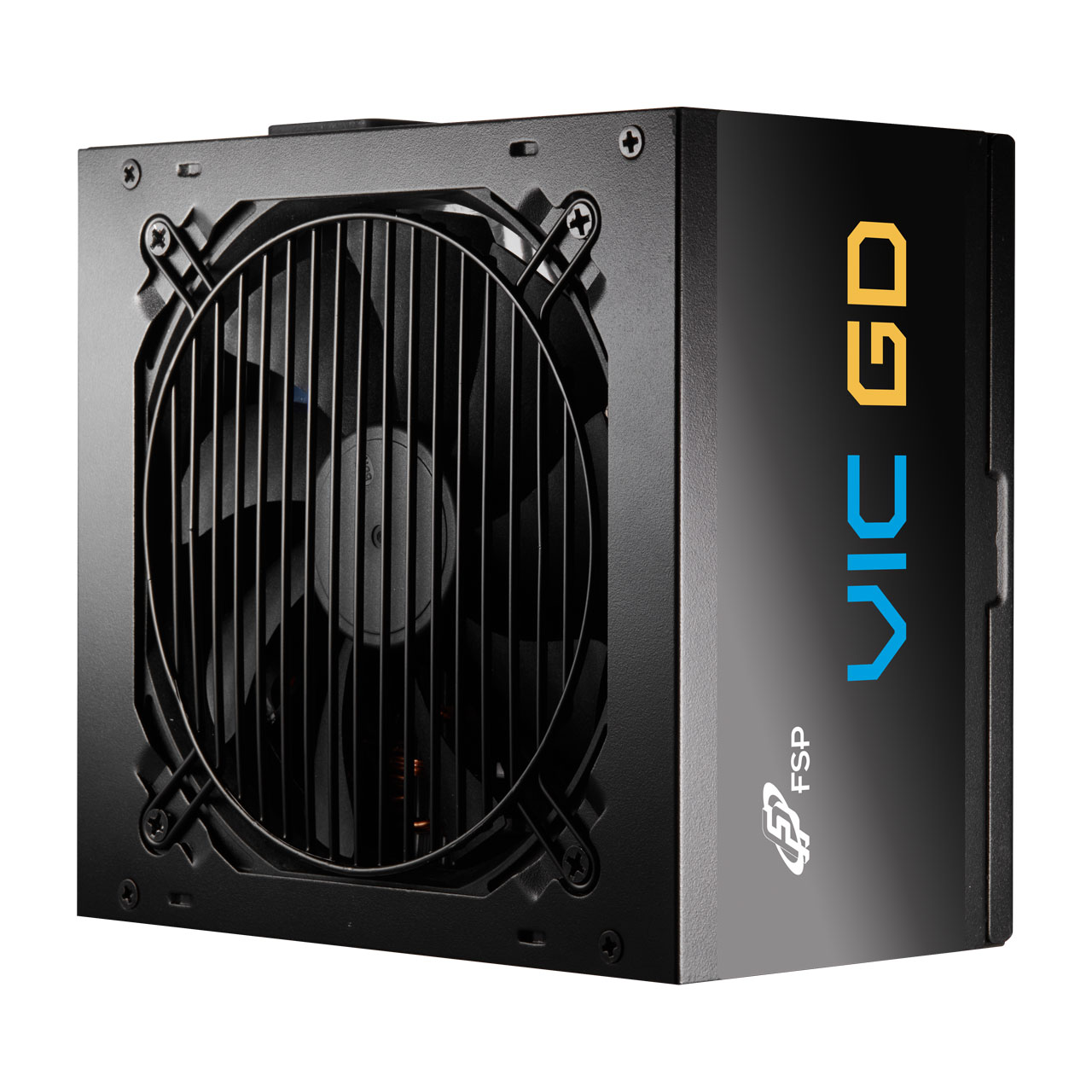

VIC GD 650W
VIC GD 650W
- Complies with ATX12V V3.1 & EPS 12V V2.92
- Supports the latest PCIe 12V-2x6 connector (850W / 750W)
- 80 PLUS® Gold certified
- Efficiency ≧ 90% at typical load
- Active PFC, Power Factor ≧ 0.9
- Low-loss LLC resonant-converter topology with synchronous Rectifier
- Ultra-quiet and durable 120mm HDB fan
- Durable 105℃ bulk capacitor
- High-power single +12V rail
- Stable and efficient DC to DC module design
- Premium embossed cables for easy routing
- Complete Protections: OCP, OVP, SCP, OPP, UVP, OTP, SIP, NLO
- Meet ErP/EuP 2013 standard
+5V & 3.3V DC to DC Circuit Design
Increase the efficiency and stabilize the output voltage to ensure system stability.

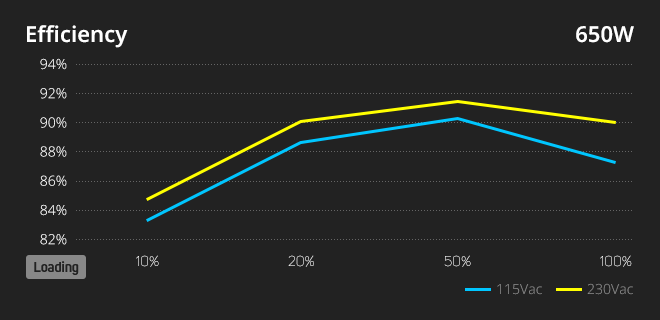

High Efficiency in Gold-certified
Certified by world-class organizations 80 PLUS® gold certification for lower power loss, less heat, and quieter operation
Power-Ready +12V Single Rail
Engineered for power-hungry VGA cards, this design delivers robust power to handle even the most demanding overloading conditions, ensuring peak performance in every gaming session.
Durable 105℃ Bulk Capacitor
The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.

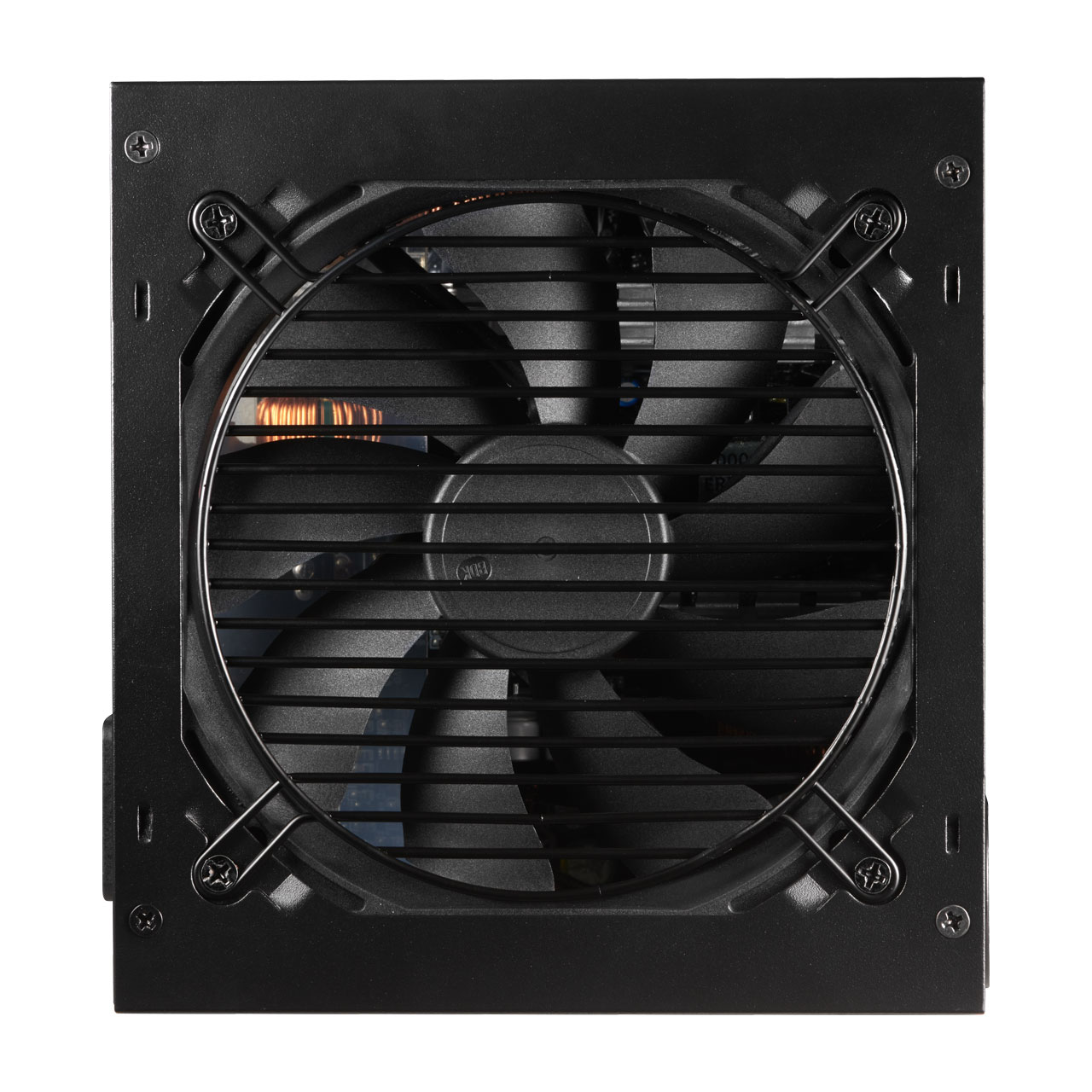

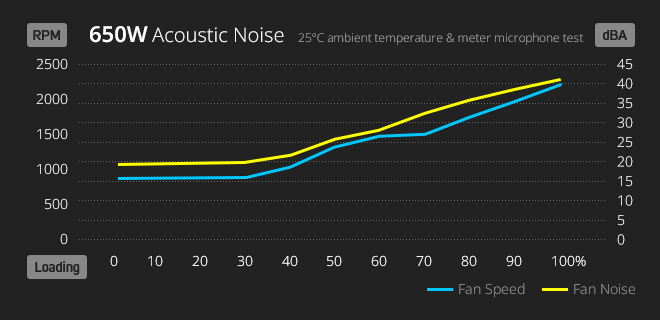

Quiet and Long-lasting HDB Fan
Built with optimized thermal solution and an advanced 120mm HDB fan for cooler components and quieter operation.

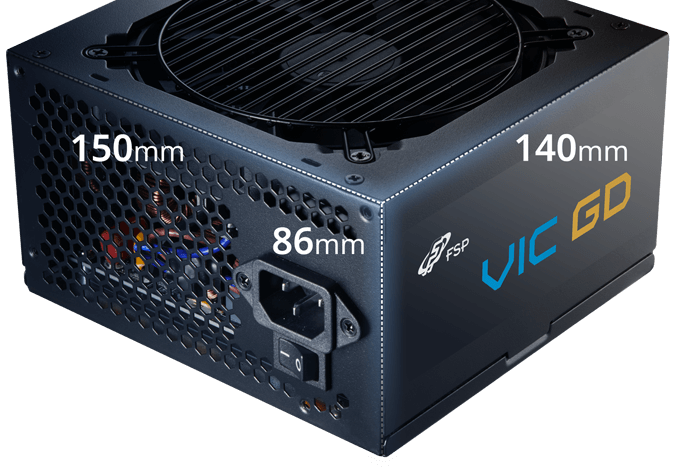

Compact PSU Size：140 x 150 x 86mm
140mm in length which is relatively shorter than industry standard, it’s ideal for compact PC or space-constraint environment without compromising on performance.
Thermal Resilience: Power You Can Depend On
The VIC GD power supply is engineered for reliable power delivery, even in temperatures up to 40°C. Count on stable performance for your everyday computing, ensuring system longevity without heat concerns.
*Performance data based on testing conducted at 25°C ambient temperature.Premium, Black Embossed Cables
Featuring improved black, embossed cables that are soft and easy to bend, users can manage them more easily, saving time and creating more space for optimal cooling performance in your PC build.
Strong Power Supply for CPU Needs
This power supply is equipped with dual 8-pin PCIe power connectors, delivering ample 12V power to meet the demands of high-performance CPUs.
OVP
Over Voltage Protection
OCP
Over Current Protection
OPP
Over Power Protection
OTP
Over Temperature Protection
SCP
Short Circuit Protection
UVP
Under Voltage Protection
SIP
Surge and Inrush Protection
NLO
No-load Operation
Complete Protection
Our comprehensive circuit shields your valuable components from harm.
MB 20+4 PIN
1 cable
1 connector
500 mm
CPU 4+4 PIN
1 cable
2 connectors
800 mm
PCIe 6+2 PIN
1 cable
2 connectors
650 mm
SATA
1 cable
4 connectors
900 mm
SATA / MOLEX
1 cable
3 MOLEX
1 SATA
900 mm
Performance
AC/DC
| AC Input | 100-240V~ 10-5A 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 16A | 16A | 54.1A | 0.3A | 3A |
| Max Combined Power | 80W | 649.2W | 3.6W | 15W | |
| Total Power | 650W | ||||
Specifications
| Model | VIC-650GD |
|---|---|
| Rated Output Power | 650W |
| Form Factor | ATX12V V3.1 |
| 80 PLUS Certification | Gold |
| Input Voltage | 100-240V |
| Input Current | 10-5A |
| Input Frequency | 50-60Hz |
| PFC | Active ≧ 0.9 |
| Efficiency(at typical load) | ≥90% at typical load |
| Fan Type | HDB Bearing, 120mm |
| Dimensions(L x W x H) | 140 × 150 × 86 mm |
| Operation Temp. | 25°C |
| Protection | OCP, OVP, SCP, OPP, UVP, OTP,SIP, NLO |
| Warranty | 3 Years |
